Home » Webshop » Invicta™ Direct Drive Wheelbase 27Nm
Back to Bestsellers
1.469,54 € Excl. VAT 1.175,63 €

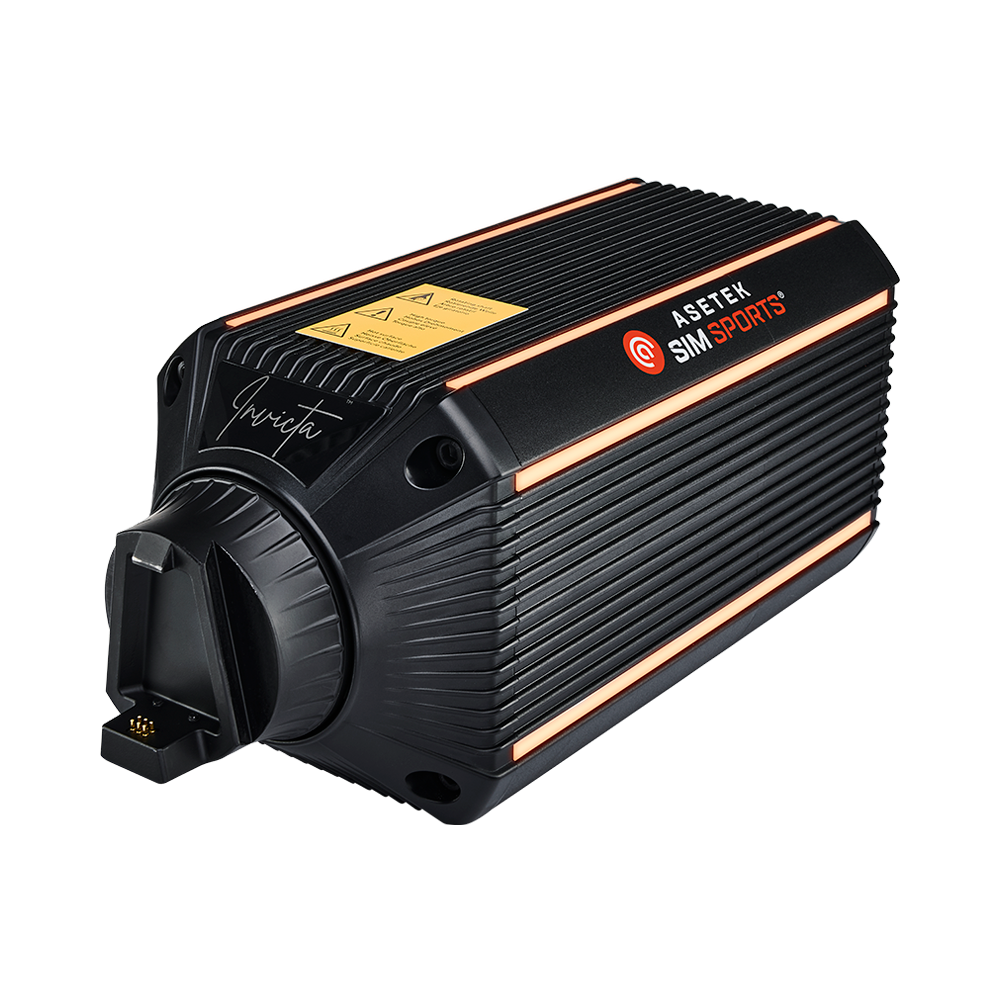

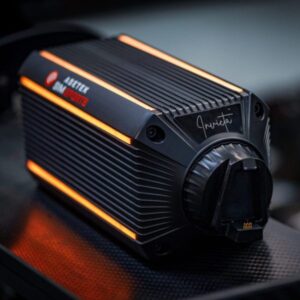

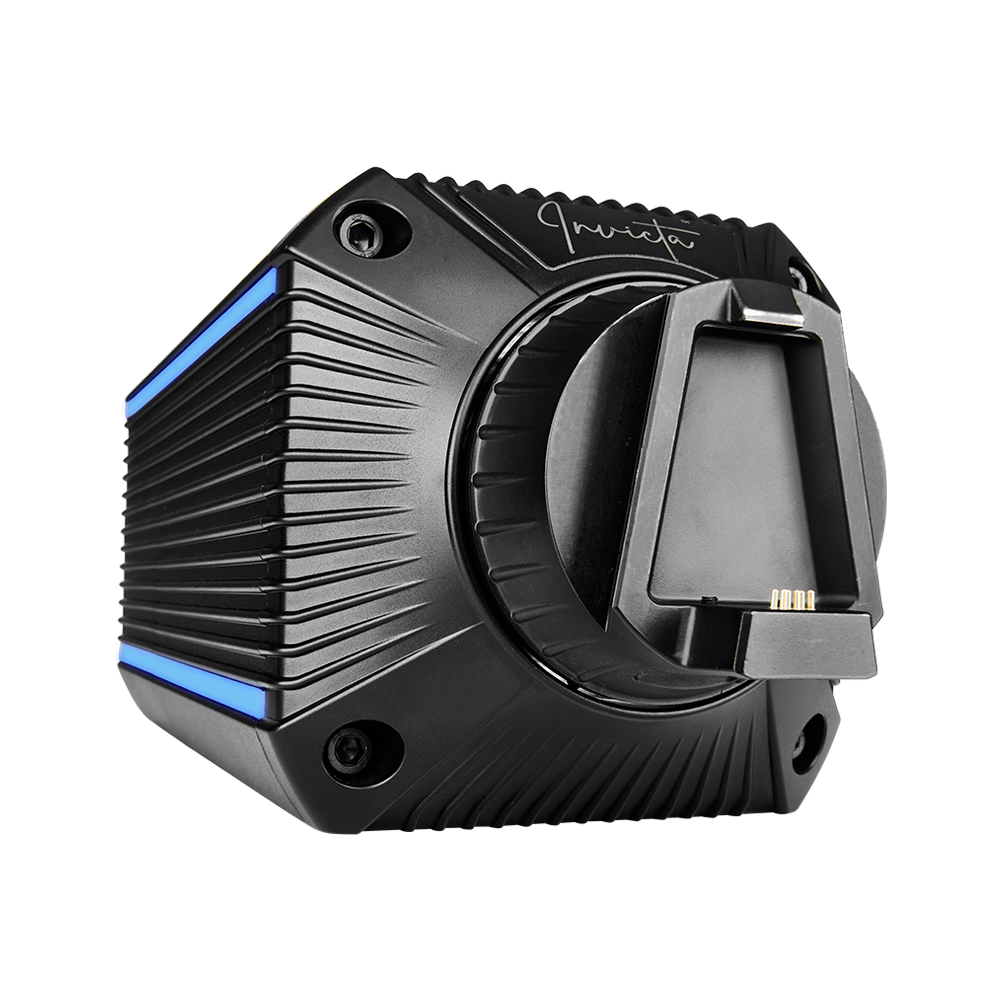

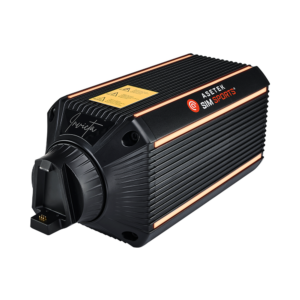

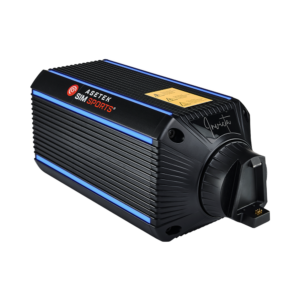

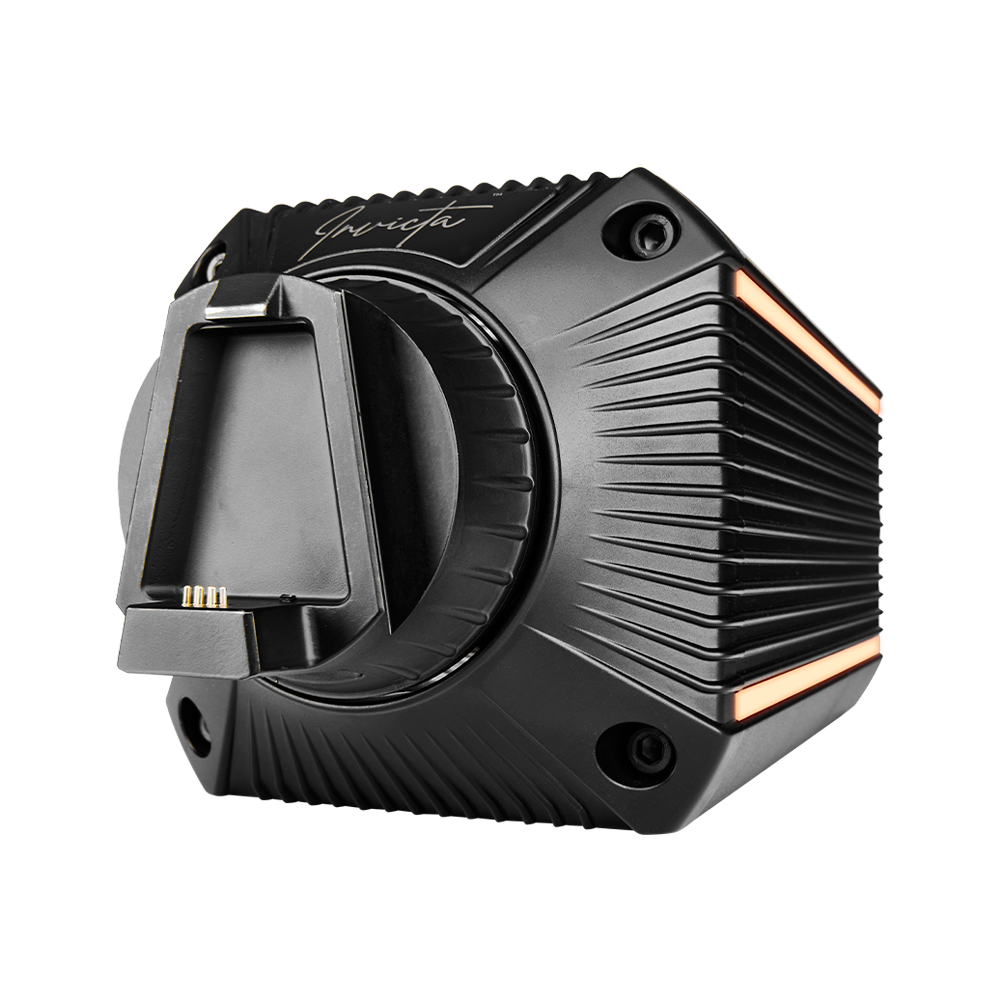

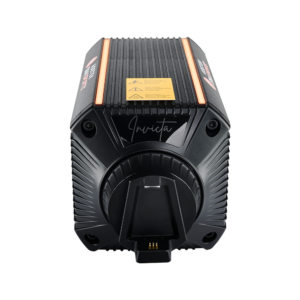

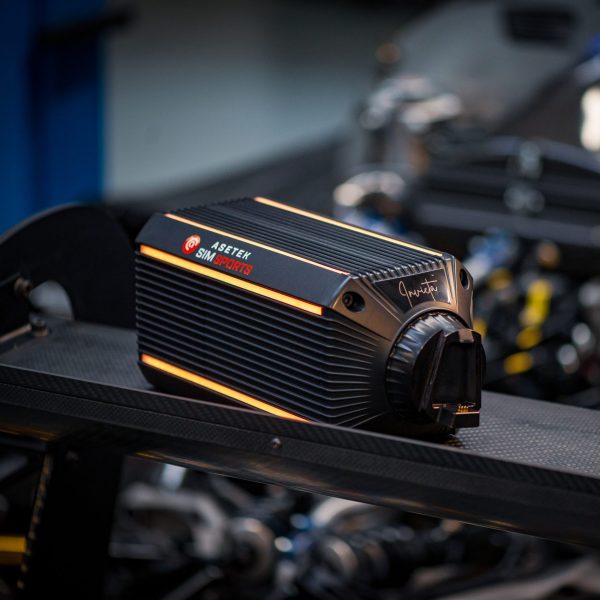

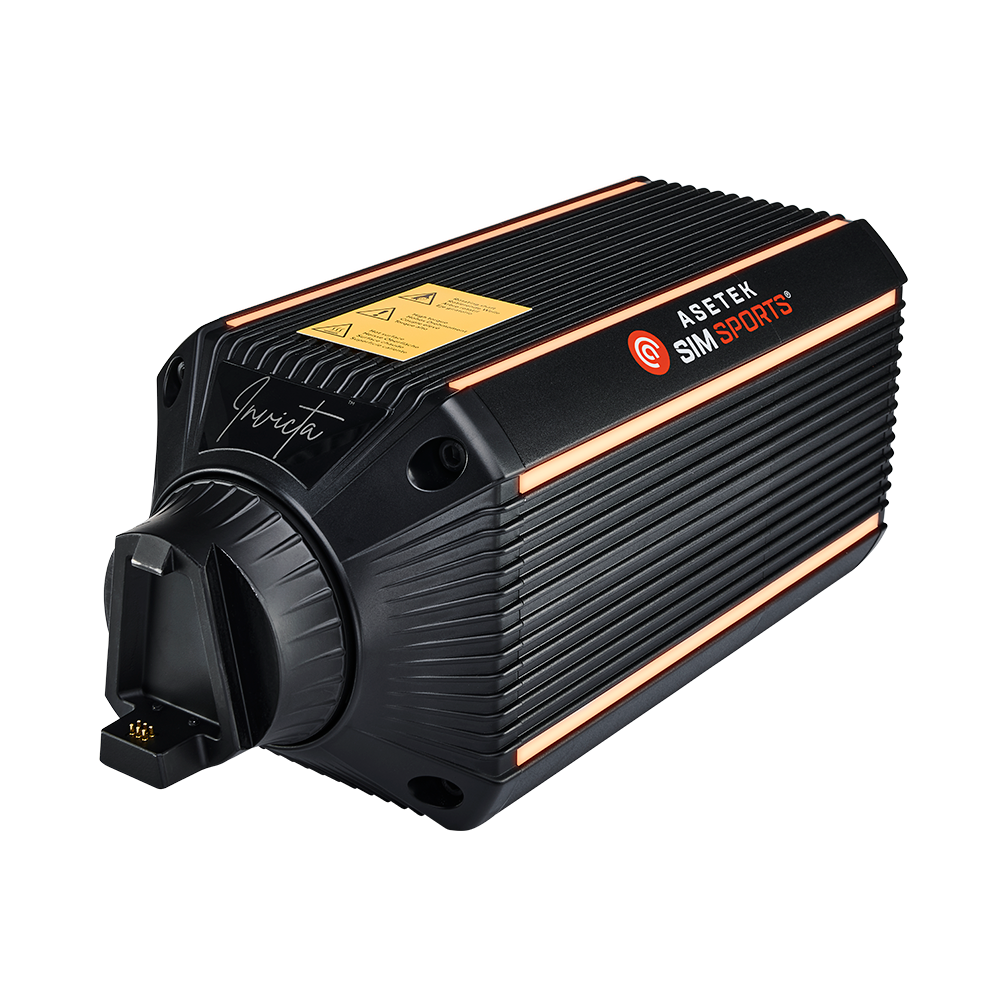

Experience consistent 27Nm force feedback with no loss of detail, even under the most demanding conditions. Every movement is translated instantly thanks to ultra-fast response, giving you sharper control and greater confidence on track.
The Invicta Direct Drive 27Nm wheelbase is built specifically for high-performance sim racing setups and integrates seamlessly into the Asetek ecosystem, offering you full flexibility – your race, your cockpit.
Whether you’re racing short sprints or endurance sessions, it is designed to deliver stable, reliable performance from start to finish.
Direct Drive Wheelbases stand out as the top-tier solution for both professional drivers and sim racers based on a host of benefits that set them apart from the competition.
Firstly, they provide an unparalleled level of immersion. This is made possible by the ability to reproduce the actual force feedback experienced in real racing, thanks to the direct connection between the wheel and motor.
Another significant benefit is improved accuracy and precision. The direct connection ensures that these attributes seamlessly translate into greater control over the car. This allows you to execute more responsive movements and make faster adjustments on the track because of the empowered and delay-free connection between the components.
Moreover, direct drive wheelbases boast exceptional durability and longevity. The absence of belts or gears that wear out over time results in reduced maintenance requirements and an extended lifespan compared to other wheelbases available in the market.

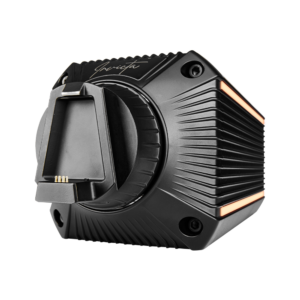

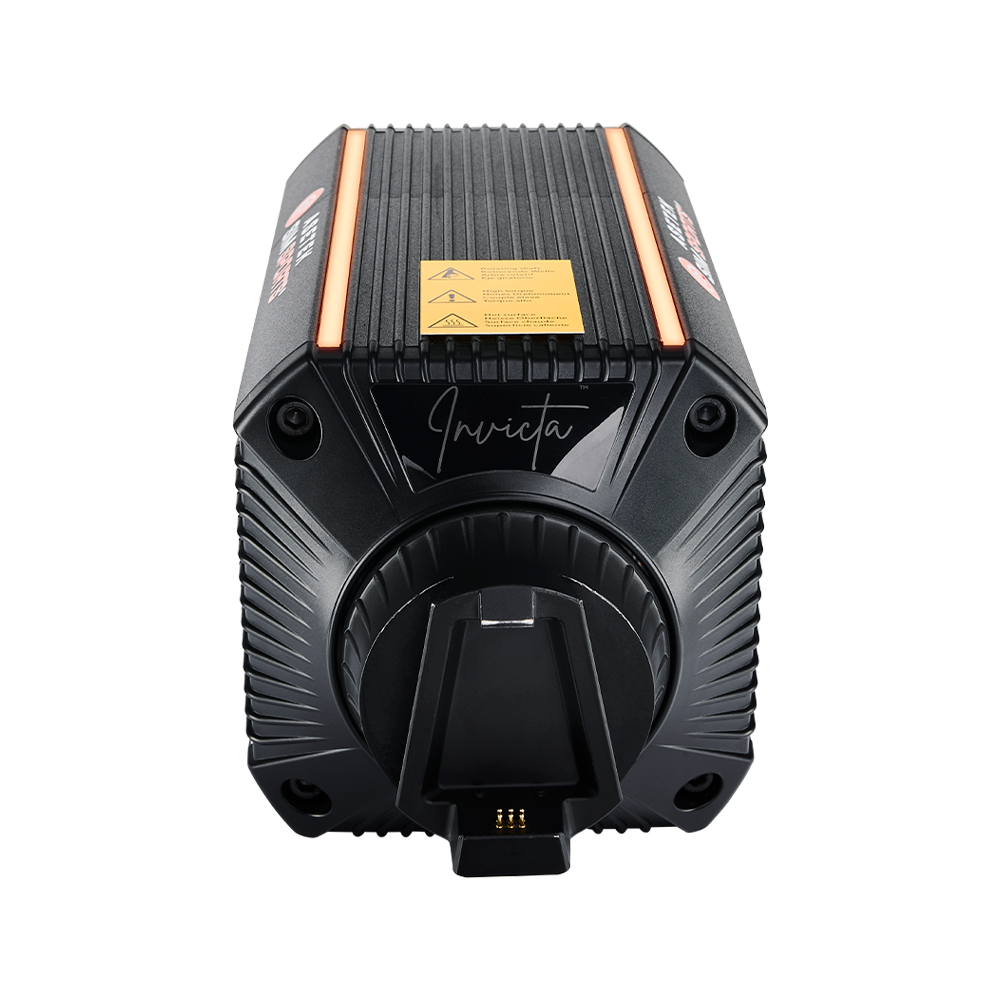

All Asetek Racing™ wheelbases feature our own Quick Release System which is as easy to use as shifting gear – literally. To disconnect the wheel from the base, all you have to do is to press a paddle and the wheel will be in your hands. Needless to say – we are not relying on wireless signals, batteries that need to be charged, or cables that can break or fall off. Everything is included in our easy–to–use no–play Quick Release. Many sim racers have personal preferences for their steering wheel. So instead of locking you into a specific eco-system, we have teamed up with a number of leading wheel vendors that will offer native support for the Asetek Racing™ Direct Drive wheelbases, meaning you can rest assured that you will be buying into a flexible and ever-expanding ecosystem.
One of the aspects that makes sim racing special is the option to customize your setup according to your specific needs.
The never-ending struggle for perfection is why we grind.
Different racers have different needs, which is why specific hardware solutions are necessary. What works effectively for someone else may not work for you.
Learn More
In basic terms, the Invicta Quick Release Adapter makes it possible to mount any steering wheel with a standard hole pattern on your Asetek Racing Wheelbase.
Until now, this has not been possible. But now it is thanks to our Invicta Quick Release Adapter Kit.
We aspire to be a game-changer in sim racing by supporting our users in their mission for performance and the most authentic experience – and by introducing this product to the market, we believe we have taken a major step towards achieving this goal and towards bringing the sim racing industry into a new era.
We’ve also partnered with some of the best wheel manufacturers in sim racing.
That means you will be able to buy one of their wheels with our quick release fitted right from their factory! This option allows you to have the smoothest and most flexible experience straight out of the box when switching between your favorite wheels – be they powered or non-powered wheels.
The Invicta Quick Release will be the same and have the same cool features whether you buy it as a separate item from our Asetek Racing webshop, from a reseller, or if you buy it as an integrated part of one of our partners’ wheels.
RaceHub™ is our central software for calibrating and adjusting Asetek Racing™ products to suit your exact needs.
Tailoring your hardware settings is crucial for achieving consistency in every performance, and that’s why RaceHub™ comes with an extensive list of features to help you achieve your goals in the simulator.
Effortlessly calibrate and adjust your throttle, brake, and clutch within seconds. All calibrations and adjustments are automatically saved in our EPROM (Erasable Programmable Read-Only Memory), saving you time for future races.
INVICTA™ DIRECT DRIVE WHEELBASE 27Nm
Q: What is the maximum torque of the Invicta™ wheelbase?A: The Invicta™ delivers up to 27Nm of torque, making it the most powerful wheelbase in the Asetek Racing lineup.
Q: How fast is the force feedback response?A: The Invicta™ features a slew rate of 9.4 Nm per ms, enabling extremely fast and precise force feedback changes.
Q: What kind of encoder does it use?A: It uses a 22 bit absolute encoder with 4,194,304 steps per revolution, ensuring highly accurate and detailed input.
Q: Does the Invicta™ support quick release systems?A: Yes, it supports the Asetek Racing Quick Release system for secure and fast wheel changes.

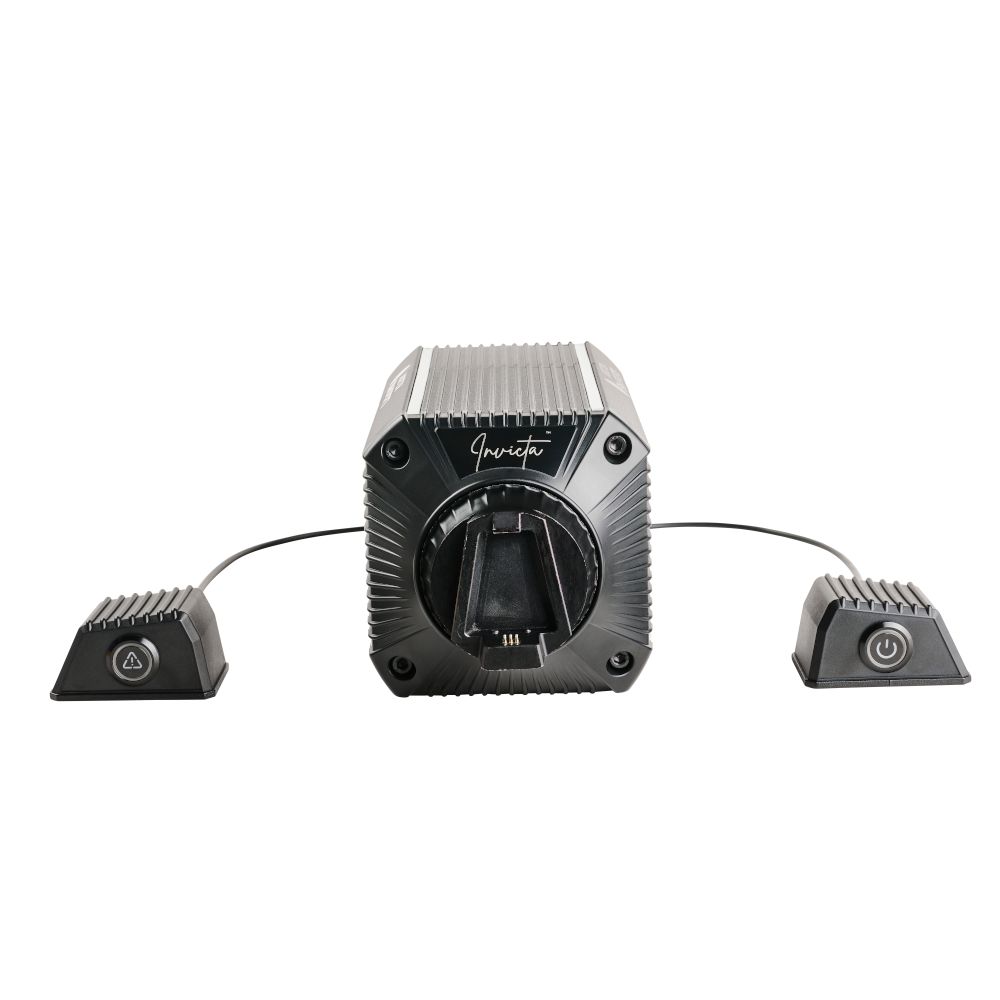

Q: Is a torque off button included?A: Yes, the Invicta™ includes a built in torque off button for added safety and quick shutdown of force feedback.
Q: What software is used to control the wheelbase?A: The wheelbase is supported by RaceHub™, which allows you to adjust torque, fine tune force feedback, and manage profiles.
Q: Does it include a USB hub?A: Yes, it features a built in 5 port USB hub for connecting additional peripherals directly to the wheelbase.
Q: What are the power requirements?A: The Invicta™ uses a 400 W power supply to ensure stable performance under high loads.
Q: What are the dimensions and weight?A: The dimensions are 133 mm x 132 mm x 327 mm and the weight is 11.3 kg.
Q: How is the wheelbase mounted?A: It features 4 x M8 threaded T nuts, with a mounting width of 87 mm and adjustable length from 30 mm to 190 mm.
Q: Does it include RGB lighting?A: Yes, the Invicta™ includes 6 integrated ARGB LED strips for visual customization.
Q: Is the Invicta™ a direct drive system?A: Yes, it is a true direct drive wheelbase with no belts or gears, ensuring instant and detailed force feedback.
Q: What is the operating temperature range?A: The wheelbase is designed to operate between 0°C and 40°C under normal room conditions.
Q: What warranty is included?A: The Invicta™ comes with a 24 month standard warranty.
INVICTA DIRECT DRIVE WHEELBASE 27NM
SELECTED SUPPORTED GAMES
This is just a selection of game titles supported by the Invicta Direct Drive Wheelbase 24NM. Some titles may not be supported.
MOUNTING OPTIONS

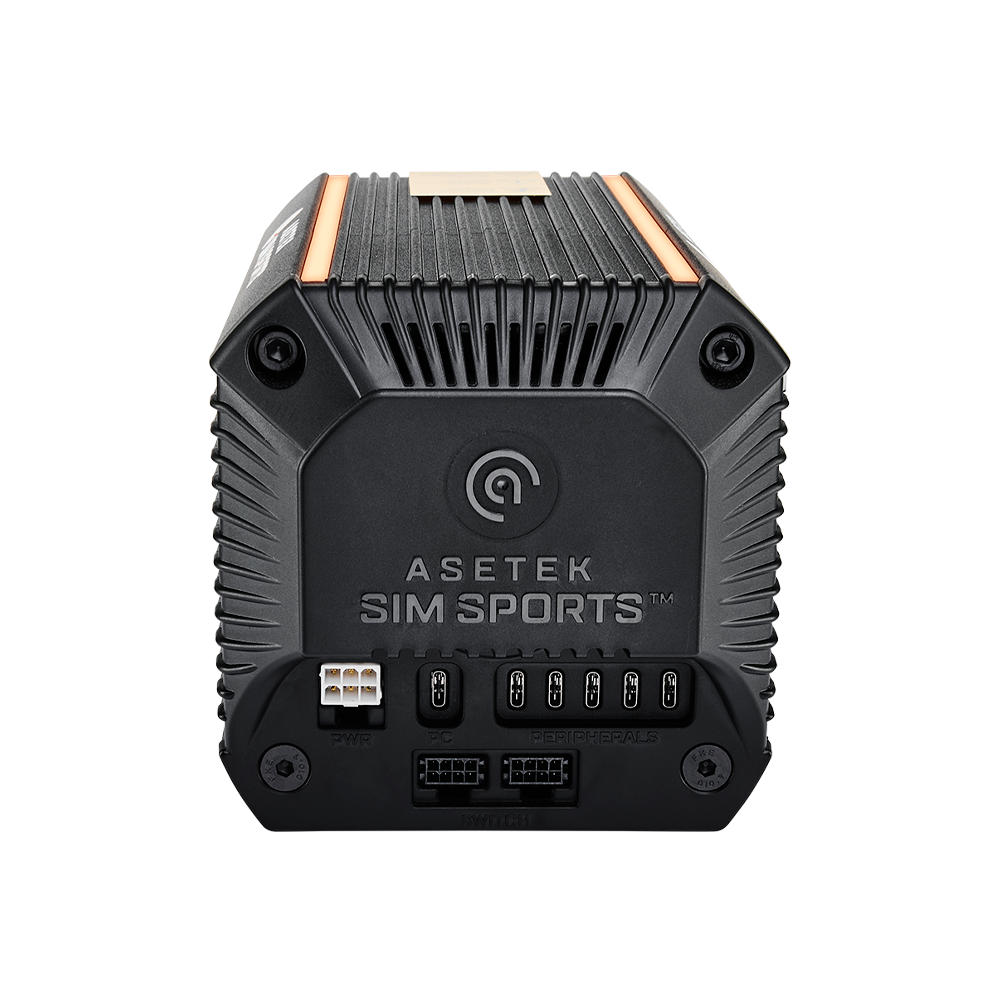

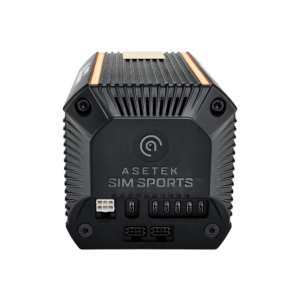

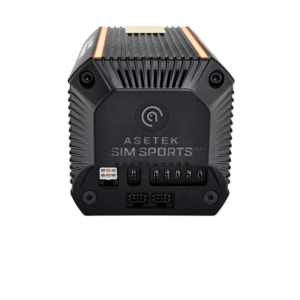

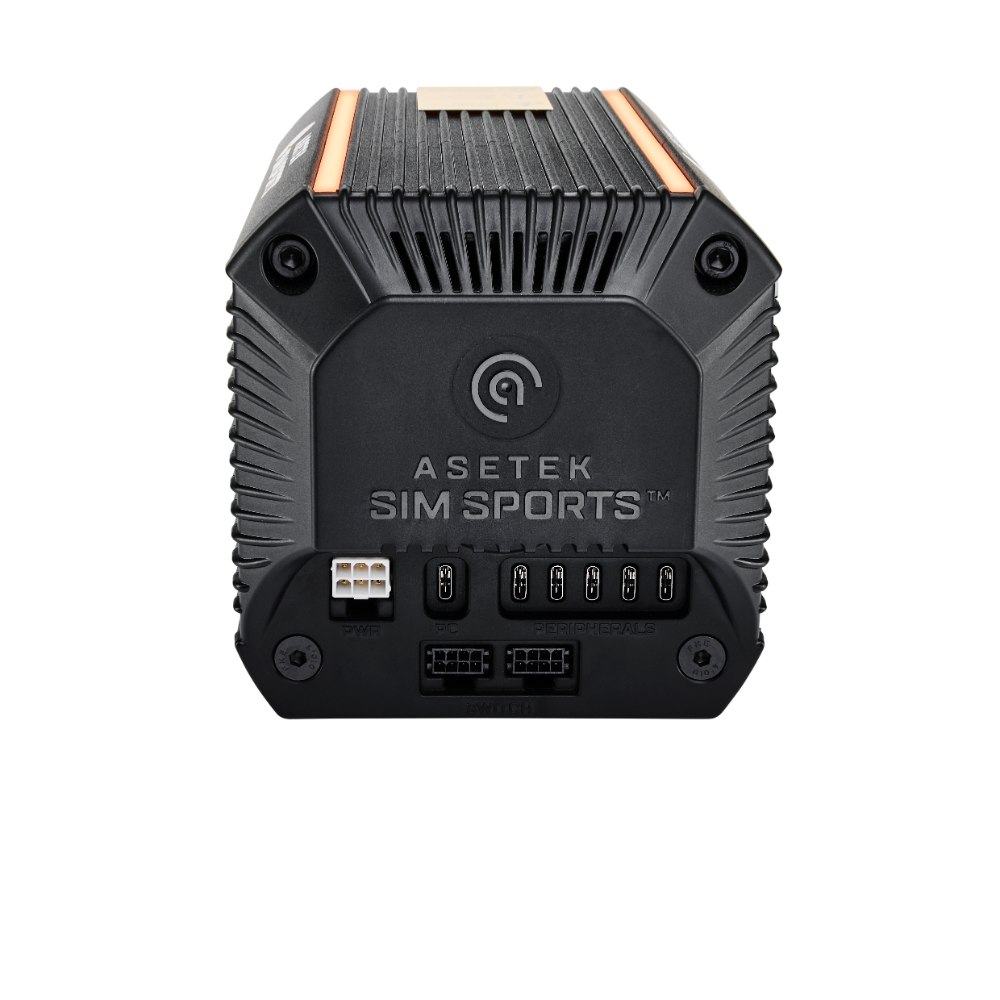

As all wheelbases are designed from the ground up, we have been able to develop an extremely compact and flexible form factor accommodating any rig and need. The wheelbase will serve as the central hub in your simulator, where you can connect your Asetek Racing™ pedals, wheels and future peripherals with up to 5 USB-C ports in the rear.
In its simplest mounting form (default from factory), the bases come with T-nuts pre-installed in bottom grooves, enabling the motor to slide back and forth in your rig without installing long and expensive steering wheel spacers that ultimately can compromise the life and reliability of your wheelbase.

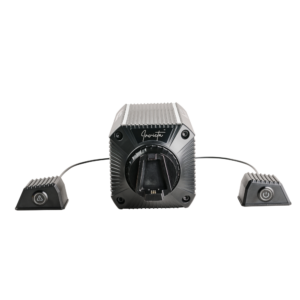

For all wheelbases, we have developed mounting options for any rig, ranging from a bottom mount, side mount, and all the way to our integrated front mounts.

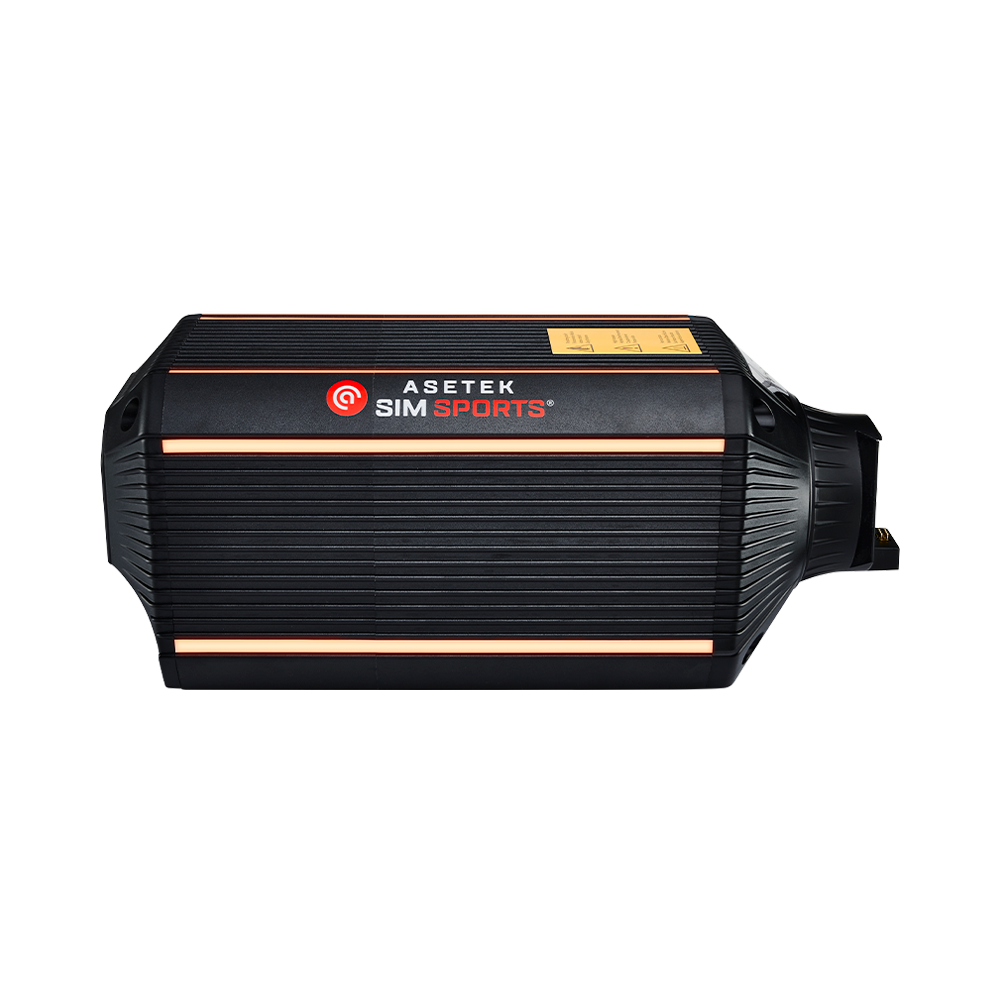

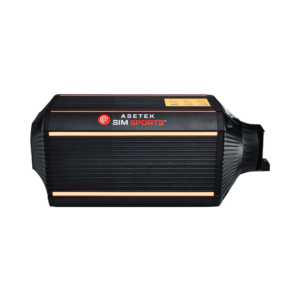

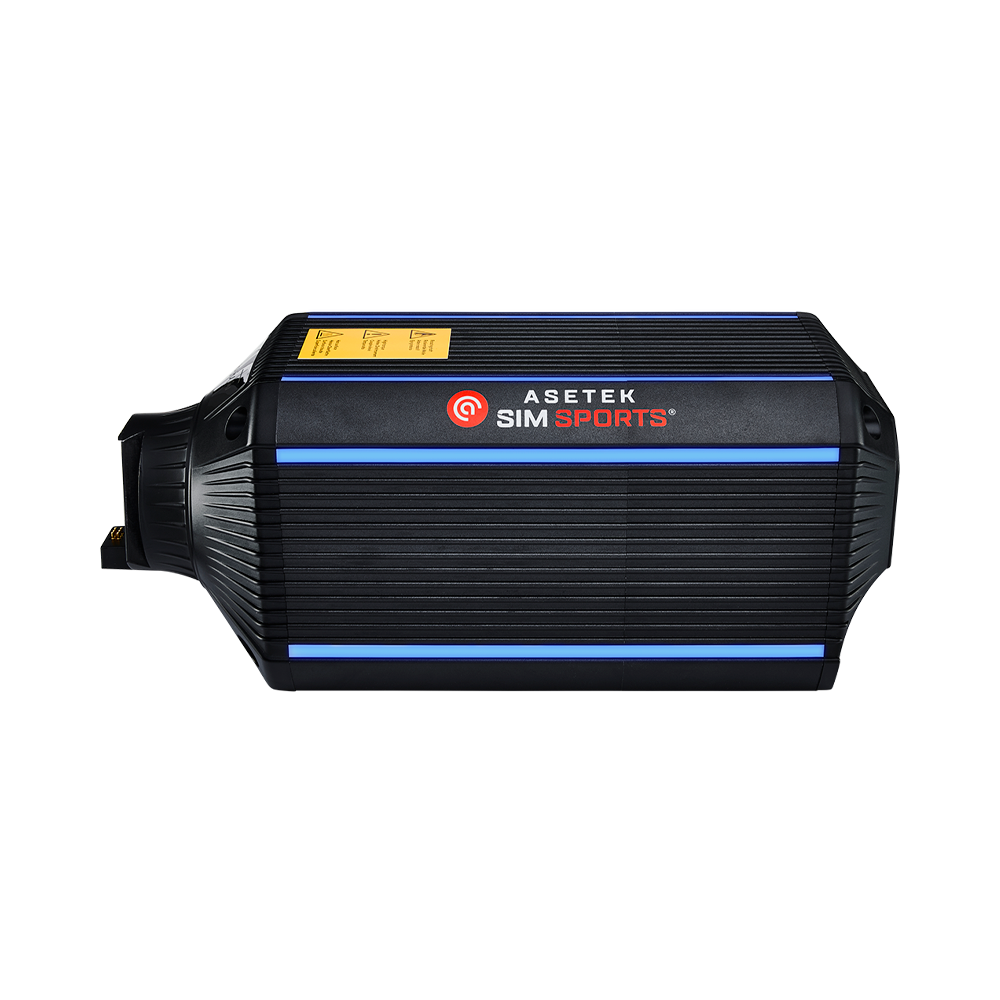

RGB

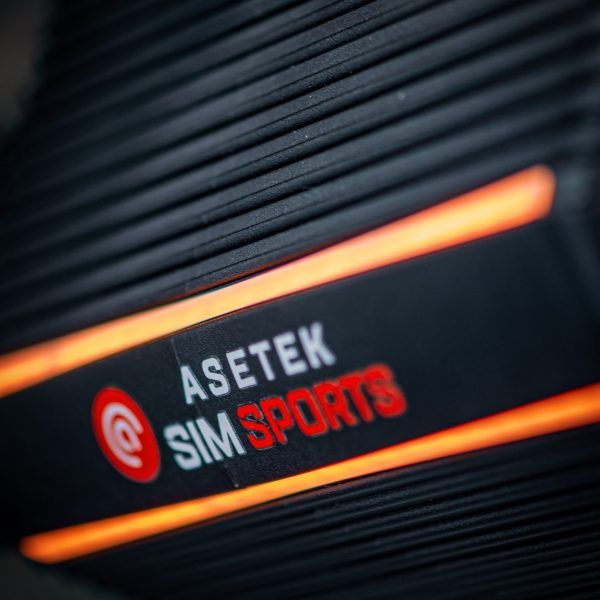

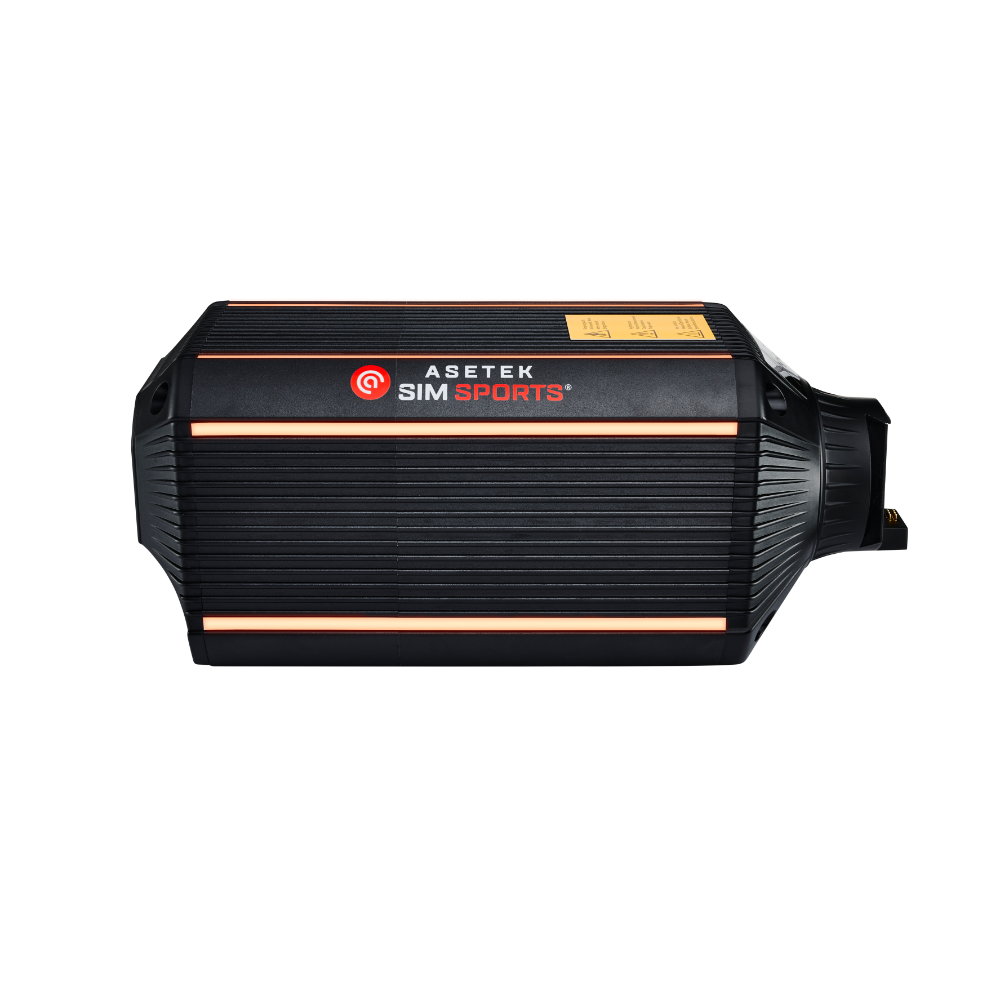

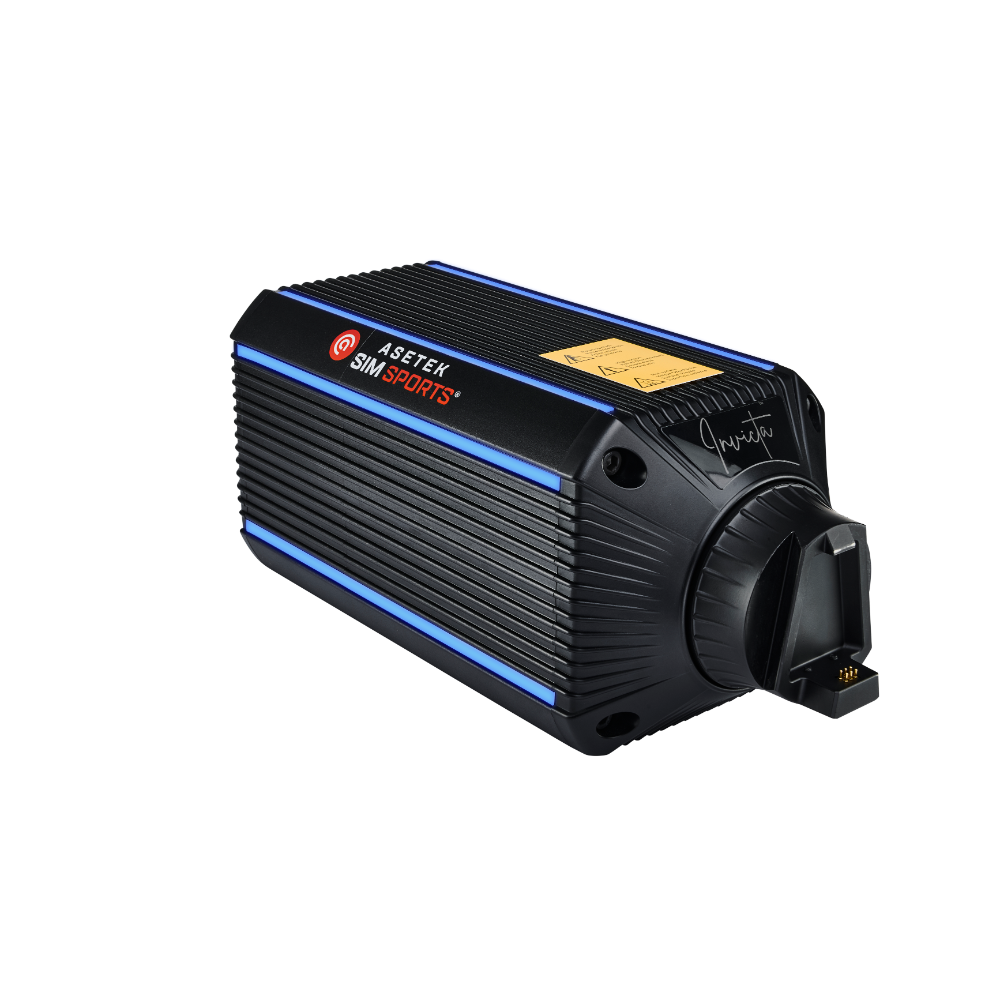

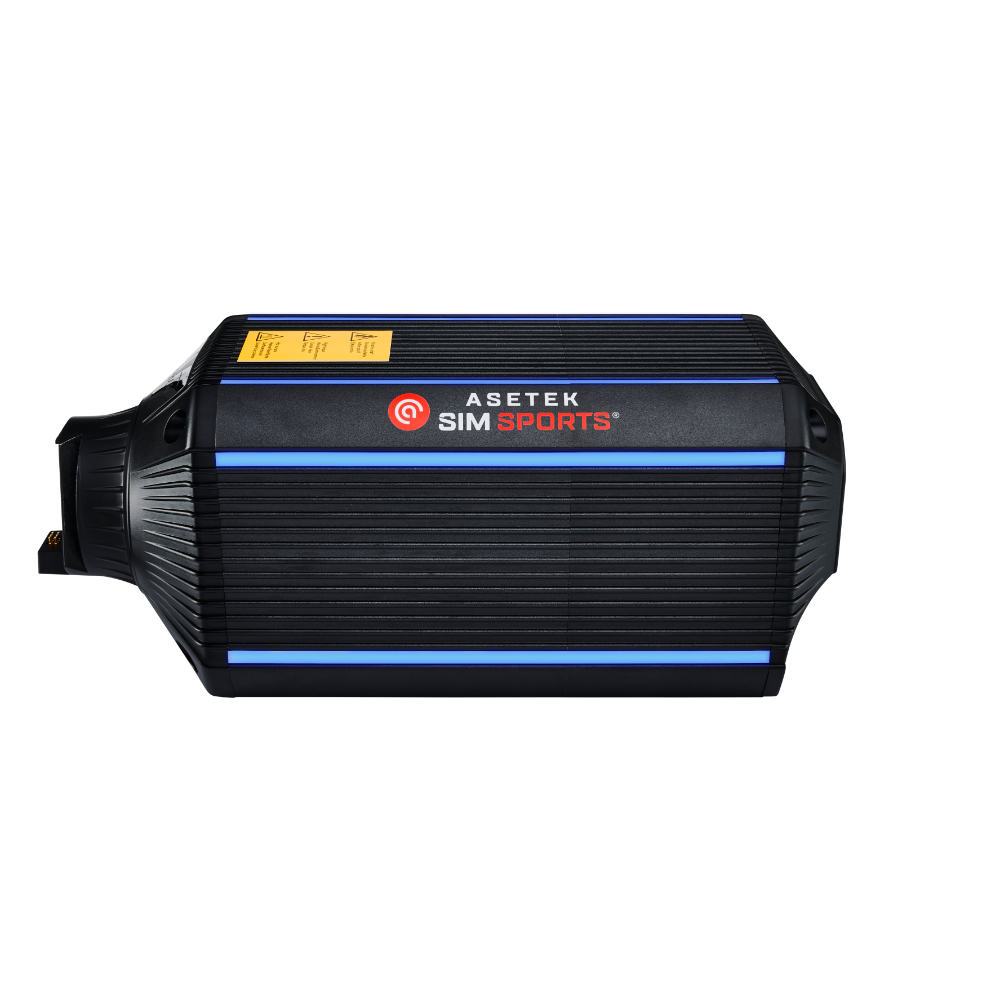

Many sim racers love to tinker with and show off their great rig, and therefore we have implemented up to six fully customizable ARGB LED strips – allowing you to match your wheelbase to the rest of your Asetek Racing™ equipment, team colors, or even the color of your fireproof racing underwear!
Everything is managed by our central software RaceHub™, which is also the home for your wheelbase, where you, in addition to all your other Asetek Racing™ equipment, can adjust the base and driving experience exactly to your preference.
