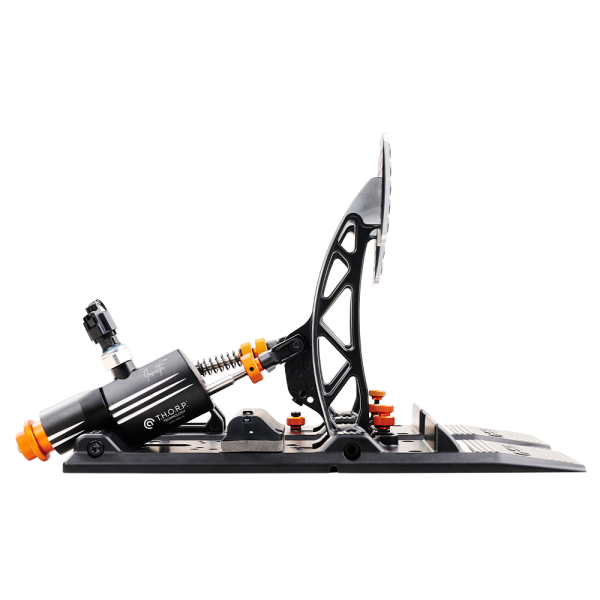

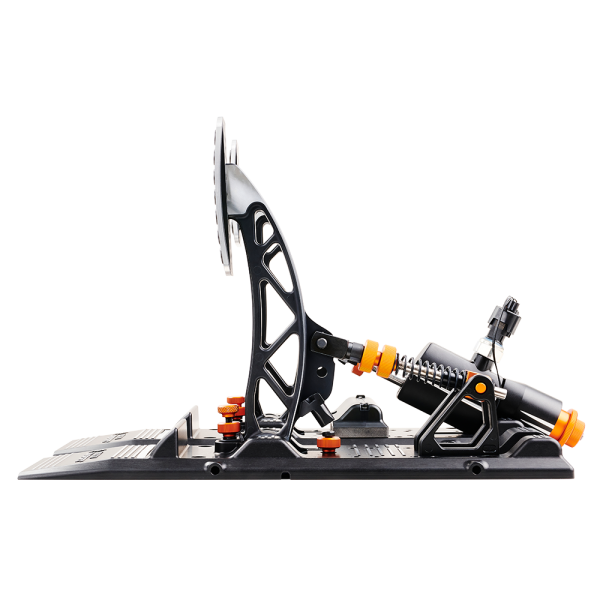

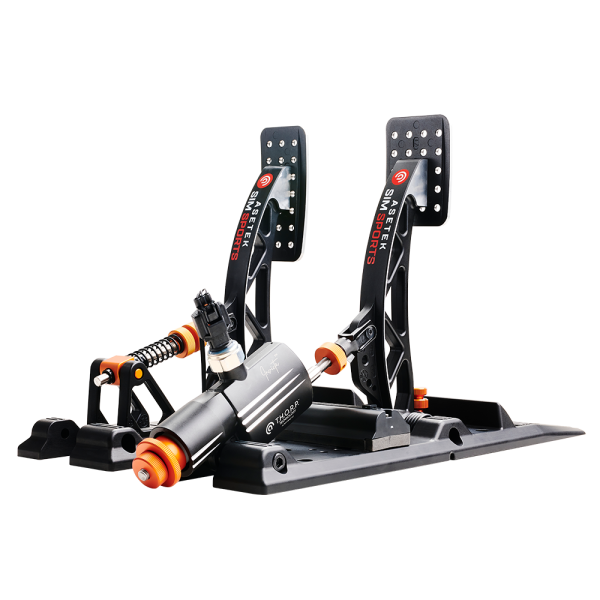

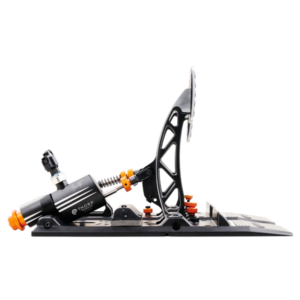

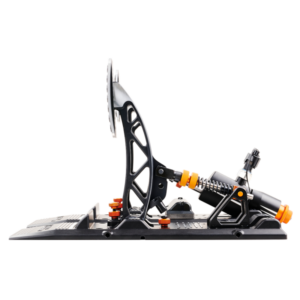

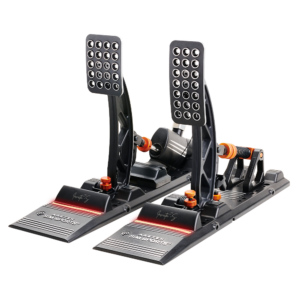

Invicta™ S-Series Pedals Set

999,99  Excl. VAT 799,99

The Invicta™ S-Series Brake and Throttle are the hydraulic top tier Invicta™ Sim Racing Pedals, as you know themjust separated (250-350mm).

Featuring the T.H.O.R.P.™ System, it provides you with the ultimate sensation of driving a real race car.

Each aspect of the sim pedals can be customized and calibrated in RaceHub™, helping you to perform like a champion.

Stock status: Medium
Find Reseller

Adjust and Decide

This version of the Invicta™ Sim Racing Pedals allows you to decide and adjust the distance between the throttle and brake up to 100 mm apart.

This feature gives you the opportunity to design your sim racing setup to suit your exact preferences, even enabling you to mount the pedals inverted. Connectible by using just a single cable.

If you want unlimited freedom in your sim racing setup without compromising on the quality of the pedals, the Invicta™ S-Series Brake and Throttle is undoubtedly the right choice for you.

Compatible with Invicta Throttle Footrest – a quick-to-mount accessory allowing you to rest your foot during long races.

The Invicta face plates offer superior grip on the pedals, helping you to avoid unintended mistakes during races.

Benefits of a Hard Brake Pedal

Having a hard brake pedal will allow your muscle memory to be trained to perfection. Muscle memory is the subconscious telling your muscles just the right amount of pressure, leaving your conscious mind to take care of more important things at that moment – like watching traffic or hitting apex.

Your muscle memory system is not wired to remember a position. Try to lift your hand with your eyes closed and reach the same spot within 0,5 mm 10 times in a row, and you will get the point.

On the flip side, your muscle memory can memorize a pressure extremely accurately, meaning going around a track, your muscle memory can make you brake the same way again and again. This cannot be achieved with a soft pedal – especially when trail braking.

BRAKE LATER. GET FASTER.

Furthermore, a hard brake pedal will allow you to brake later. Imagine having a brake pedal with 50 mm (common for many sim racers) of travel versus a brake pedal with almost zero travel.

You are going 300 km/h down a straight. With the long travel brake, it will physically take you perhaps 1/10 of a second more to reach full braking power. On the stiff brake pedal, you will reach maximum braking power instantly.

If you have three hard braking zones on a track, you will gain 3/10 of a second each lap by using a hard brake with minimal travel.

The hydraulic brake system that gives you an unrivaled and authentic braking experience.

1. Enhanced Control

A hard brake pedal provides you with more control and increases your chances of delivering consistent performances every time.

2. Improve Muscle Memory

An improved use of muscle memory helps you to refine your pedal inputs and thereby establish more consistent braking.

3. Shorter Travel, Later Braking

A hard brake equates to a shorter travel distance, meaning you physically need to move the brake for a shorter duration to gain maximum braking power.

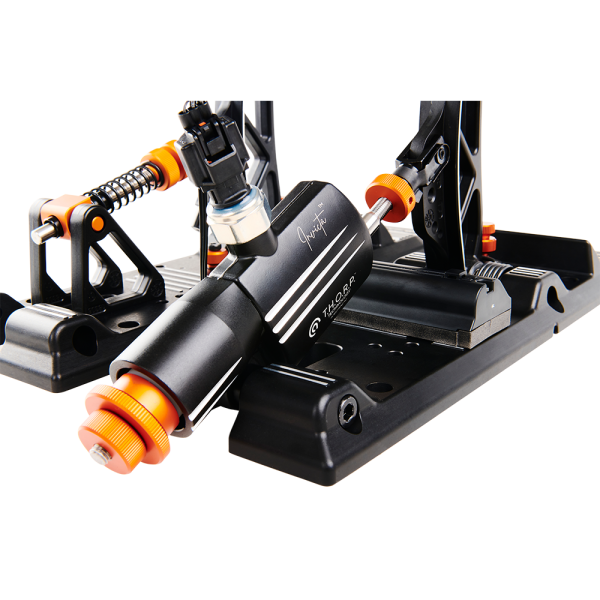

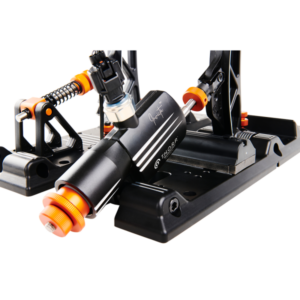

THE T.H.O.R.P.™ SYSTEM

The T.H.O.R.P. (Twin Hydraulic Opposing Rapid Pistons) System is Asetek SimSports’ hydraulic brake cylinder which gives you the ultimate experience of driving a real racecar. The brake cylinder features an automotive grade pressure sensor, which makes it the closest you will come to an authentic brake experience in sim racing.

The functionality of the T.H.O.R.P. System is based on two stages – the soft stage and the hard stage – just like in a real race car.

THE SOFT STAGE

Real race car: When you apply pressure on the pedal, it will move 10-20 mm (measured on the pedal plate), while you build up pressure, while the caliper pistons are traveling to and pushing the brake pads against the brake disc, and to compensate for the small amount of play in all the mechanical parts on the pedal system that is required for them not to seize up. T.H.O.R.P. System: Since we do not have a brake disc, caliper and brake pads in a simulator, we made the slave cylinder to mimic this. The slave cylinder is compressing an elastomer, and like in a real race car, it will allow a pedal travel of maximum 20-25 mm measured on the pedal plate. When full pedal travel is obtained, the slave cylinder will hit a mechanical stop, just like in a real race as described above. We supply different elastomers to mimic different feelings of the “soft stage”, but the different elastomers will not change the pedal travel, only how much force that is needed to fully depress the pedal and engage the hard stage.

THE HARD STAGE

When hydraulic pressure is built up, the brake pads are squeezing the discs hard and all mechanical play is compensated. In this stage, your foot is basically pressing against a wall, because now your muscles are pressing directly against the hydraulic forces (the brake fluid). Since the fluid cannot be compressed, you will feel the pedal is hard. When a racecar driver complains about a “long” or a “soft” pedal, it is typically because there is air in the system, and since air CAN be compressed, the pedal will feel soft and long. The mechanics then bleed the brakes for air, meaning there is only fluid left in the system, and the pedal is once again hard after passing the “soft stage”. T.H.O.R.P. System: When the slave system is mechanically locked, you have 100% the same feeling as in a racecar, when the brake pads are fully pressed against the brake disc, and your muscles are pressing directly against the hydraulic forces. This is NOT simulated, this is the same and identical feeling as in a racecar, and you can keep pressing the pedal up to a hydraulic pressure of 100 bar, which corresponds to 185 kg of pressure on the pedal plate – the same as a real F1 car!

CUSTOMIZE YOUR PEDALS

Invicta™ Clutch System
312,49  Excl. VAT 249,99
Elastomer Kit
52,49  Excl. VAT 41,99
Firm Throttle Spring
12,49  Excl. VAT 9,99
Forte® Pedal Face Plates
62,49  Excl. VAT 49,99
Forte® Pedal Face Plates
41,24  Excl. VAT 32,99
Invicta™ Long Travel Kit
19,99  Excl. VAT 15,99
Invicta™ Pedal Face Plates
41,24  Excl. VAT 32,99
Invicta™ Throttle Footrest (L)
Original price was: 41,24 €.Current price is: 10,31 €. Excl. VAT 8,25
Invicta™ Throttle Footrest (M)
Original price was: 41,24 €.Current price is: 10,31 €. Excl. VAT 8,25
Universal Footrest
41,24  Excl. VAT 32,99

THE SOFTWARE BEHIND YOUR SUCCESS

RaceHub is our central software for calibrating and adjusting Asetek SimSports products to suit your exact needs.

Tailoring your hardware settings is crucial for achieving consistency in every performance, and that’s why RaceHub comes with an extensive list of features to help you achieve your goals in the simulator.

Effortlessly calibrate and adjust your throttle, brake, and clutch within seconds. All calibrations and adjustments are automatically saved in our EPROM (Erasable Programmable Read-Only Memory), saving you time for future races.

NOT READY FOR INVICTA?

The Invicta Pedals aren’t for everyone. If you’re new to sim racing, it might be better to start your journey with the La Prima Pedals or Forte Pedals.

Once you’re ready to take the next step, you can easily upgrade your pedals with one of our upgrade kits.

REVIEWS

Boosted Media - Invicta Sim Racing Pedals Review
Dan Suzuki - Invicta Sim Racing Pedals Review
Dave Cam - Invicta Sim Racing Pedals Review
Laurence Dusoswa - Invicta Sim Racing Pedals Review

GENERAL INFORMATION

SPECIFICATIONS

Dimensions

  • Depth, width, and height: 457 mm x 212 mm x 256 mm
  • Weight: 3 kg

General Tech

  • Exquisite, radical, and minimalistic industrial Danish design (Registered Community Design No. 009148265-0001/0002/0003)
  • Adjustable pedal stops
  • Adjustable travel settings
  • All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces.

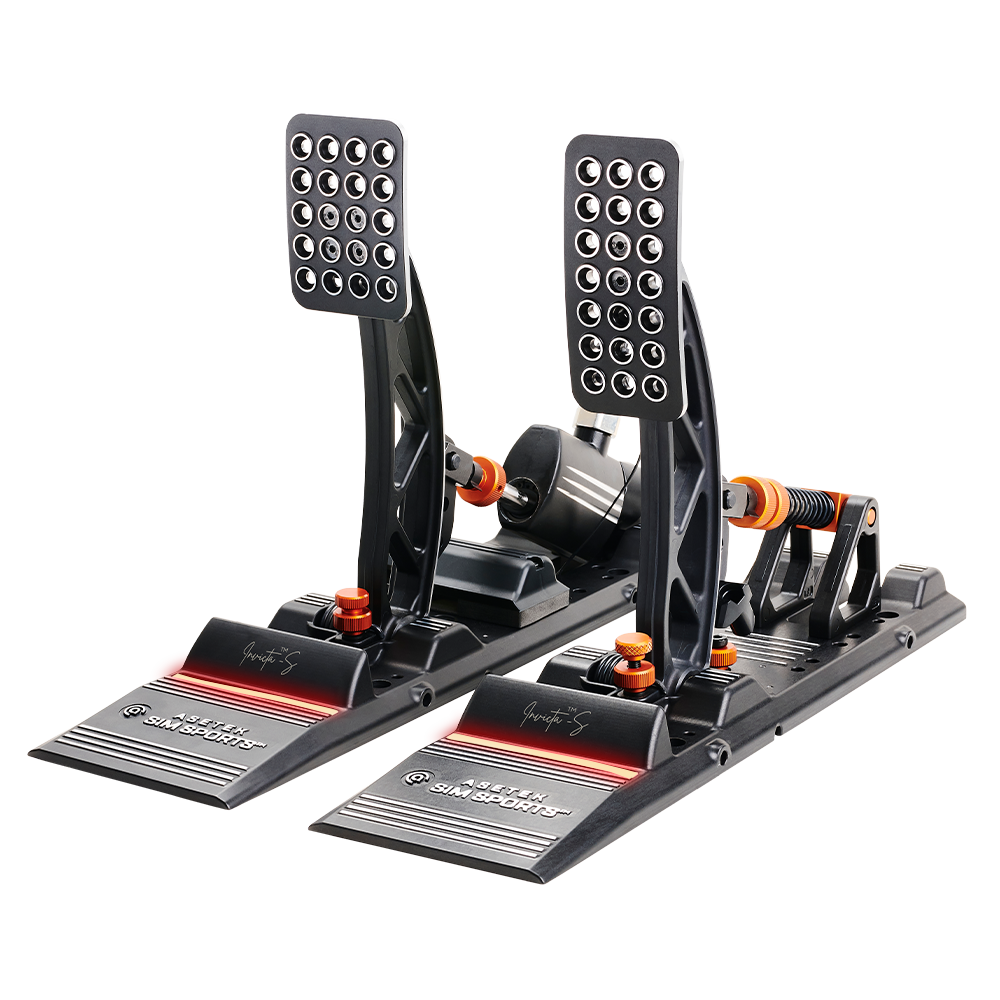

  • Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software
  • Adjustable pedal plates that can be moved along the x- and y-axis
  • Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will be remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
  • Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
  • Each pedal can be calibrated through the intuitive and easy to use RaceHub software
  • Pedal upper and lower dead zones can be set through the RaceHub software
  • All adjustable mechanical features are by default colored orange
  • Inhouse developed electronics with 16-bit resolution and automotive-grade pressure sensor
  • Optional to purchase smooth sock-friendly pedal plates
  • Designed and tested to 1,000,000 activations

Brake System

  • The T.H.O.R.P. (Twin Hydraulic Opposing Rapid Pistons) patented hydraulic brake cylinder gives the you the ultimate experience of driving a real racecar
  • Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
  • Automotive-grade pressure sensor
  • The inhouse designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.
  • Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect racecar feel as well as not overloading the elastomer
  • Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
  • Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)
  • 100 bar of pressure equals 180 kg of force on the face of the pedal plate
  • Hydraulic Brake Cylinder made from forged aluminum
  • Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg

Throttle System

  • Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
  • 16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
  • Custom throttle curves can be adjusted and 100% customized in the RaceHub Software to mimic real racecar butterfly opening. For example a linear curve in dry conditions and a progressive in wet conditions
  • Adjustable pedal hardness, travel and stop
  • Interchangeable spring for bigger step in pedal hardness
  • Pedal arm is designed for 200 kg of force and a burst pressure of up to 700 kg!

COMPATIBILITY AND BOX CONTENTS

PC
Console support planned in the future

Platforms: Windows 10, 11

Products

Games

  • Assetto Corsa
  • Assetto Corsa Competizione
  • DiRT Rally
  • DiRT Rally 2.0
  • F1 Series
  • iRacing
  • Project Cars 2
  • rFactor 2
  • And many more (all games that accept direct input devices)

Box Contents

  • Invicta™ S-Series THORP Brake
  • Invicta™ S-Series Throttle
    USB Type-A to USB Type-C cable 1.5m
  • USB Type-C to USB Type-C cable 1.5m
  • Throttle/Clutch extension cable 300mm
  • Throttle/Clutch extension cable 400mm
  • M6x5 Set screw (x2)
  • M6x20 bolt (x8)
  • M6 Slot nut (x8)
  • Washer (x8)
  • M6 Hex nut (x8)
  • Allen key, 3mm
  • Allen key, 5mm
  • Elastomer, Black, Soft
  • Elastomer, White, Medium (Preinstalled)
  • Elastomer, Green, Hard
  • Throttle Spring, Hard (Preinstalled)
  • Throttle Spring, Soft
