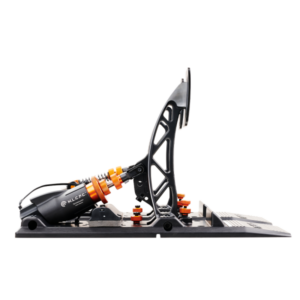

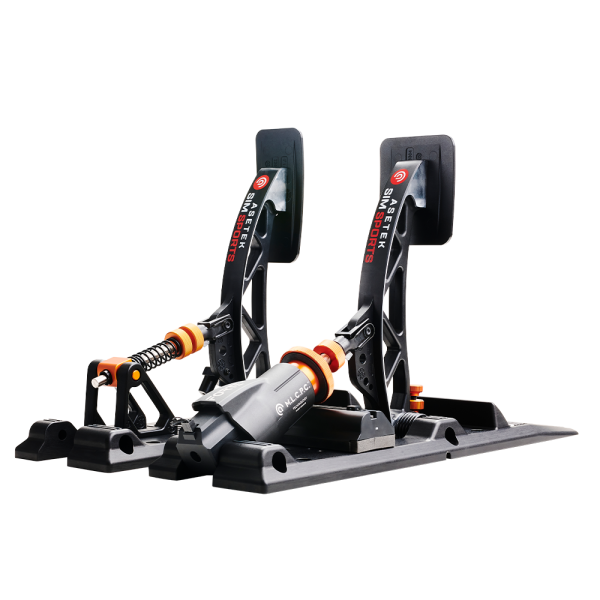

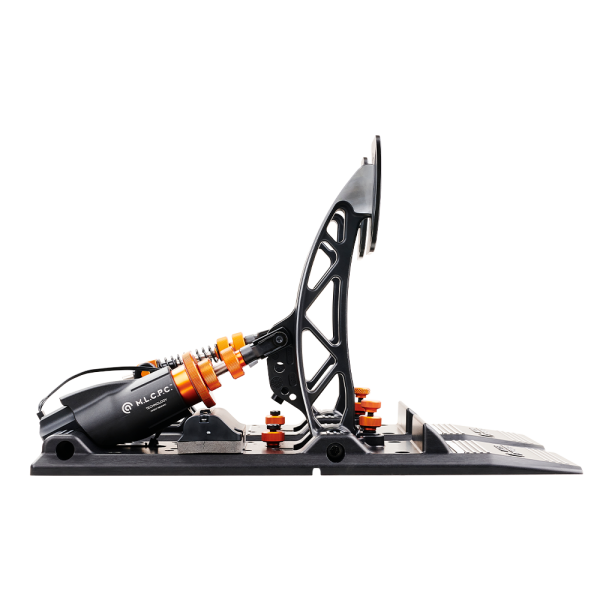

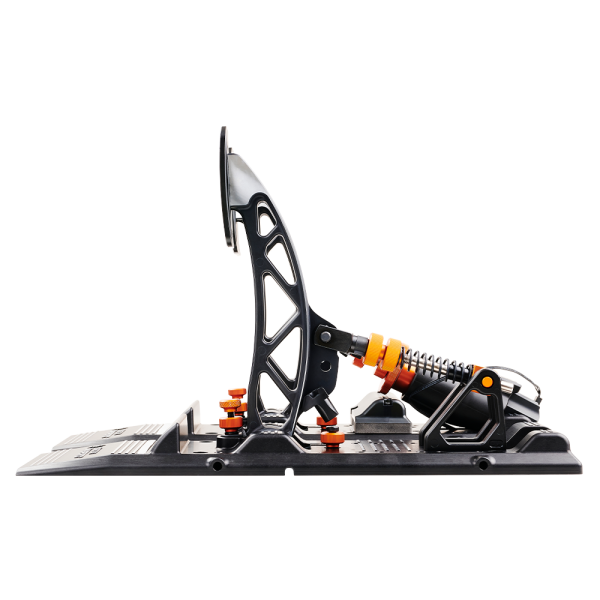

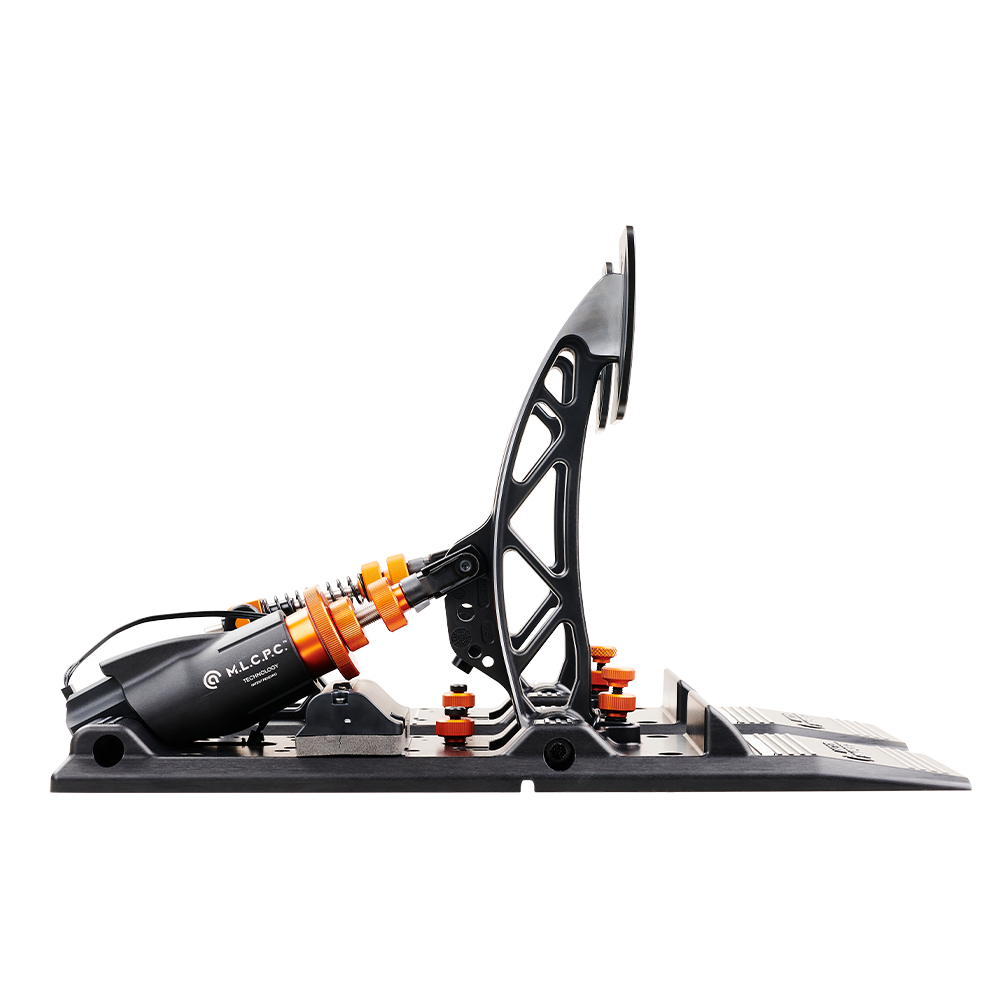

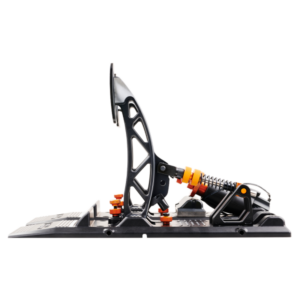

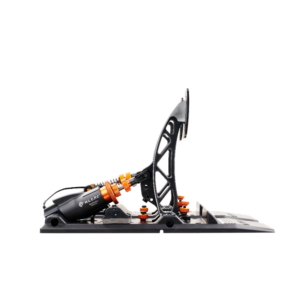

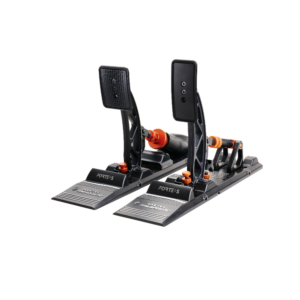

Forte® S-Series Brake and Throttle

Compatibility:
PC

$ 529.00 Excl. VAT $ 529.00

The Forte® S-Series Brake and Throttle are the Forte® Sim Racing Pedals, as you know them – just separated (250-350mm).

Experience an authentic race car brake feeling without committing to a hydraulic system.

The brake is adjustable from soft to hard, ensuring consistency and longevity for your future performances.

In stock and ready to ship

Decide and Adjust

The Forte® S-Series Pedals offer adjustable distance between the throttle and brake, allowing customization up to 100 mm apart. This feature makes it possible to customize your sim racing setup to your exact preferences – including the option to mount the pedals inverted. Connectivity is simplified with just a single cable.

Together with the RaceHub™ software, you have almost unlimited opportunities to create a unique and personalized sim racing setup to help you perform like a pro every time you grab the wheel.

Compatible with Invicta Throttle Footrest – a quick-to-mount accessory allowing you to rest your foot during long races.

The Forte® face plates are sock-friendly for a comfortable driving experience with and without shoes.

ENHANCED CONTROL

A hard brake pedal provides you with more control and increases your chances of delivering consistent performances every time.

IMPROVE MUSCLE MEMORY

An improved use of muscle memory helps you to refine your pedal inputs and thereby establish more consistent braking.

SHORTER TRAVEL, LATER BRAKING

A hard brake equates to a shorter travel distance, meaning you physically need to move the brake for a shorter duration to gain maximum braking power.

THE M.L.C.P.C.™ SYSTEM

Most mechanical sim racing pedals on the market have an ‘unlimited’ travel, essentially determined by how hard you squeeze the elastomer. Often, the elastomer is overworked (compressed beyond its design), resulting in a spongy and inconsistent brake feel, eventually leading to the elastomer breaking due to being overworked and out of specification.

But, most importantly, with the longer brake pedal travel, you have to brake earlier to build up full brake pressure and lose out on important milliseconds every lap.

To avoid that, the functionality of the M.L.C.P.C System is based on two stages – the soft stage and the hard stage – just like in a real race car and the Invicta Pedals.

THE SOFT STAGE

REAL CAR

When you apply pressure on the pedal, it will move 10-20 mm (measured on the pedal plate), while you build up pressure, while the caliper pistons are traveling to and pushing the brake pads against the brake disc, and to compensate for the small amount of play in all the mechanical parts on the pedal system that is required for them not to seize up.

M.L.C.P.C. SYSTEM

In our pursuit of creating the most authentic race car feel, we’ve incorporated a mechanical stop in the M.L.C.P.C. System. That means you can adjust the hardness of the soft stage by changing elastomers, but the travel will be limited to 15-25 mm on the pedal plate (around 12 mm piston travel in the M.L.C.P.C cylinder).

HARD STAGE

REAL CAR

When hydraulic pressure is built up, the brake pads are squeezing the discs hard and all mechanical play is compensated. In this stage, your foot is basically pressing against a wall, because now your muscles are pressing directly against the hydraulic forces (the brake fluid). Since the fluid cannot be compressed, you will feel the pedal is hard.

When a racecar driver complains about a “long” or a “soft” pedal, it is typically because there is air in the system, and since air CAN be compressed, the pedal will feel soft and long. The mechanics then bleed the brakes for air, meaning there is only fluid left in the system, and the pedal is once again hard after passing the “soft stage”.

M.L.C.P.C. SYSTEM

To simulate the ‘hard stage’ where it feels like pressing against a concrete wall, we have implemented a rubber damper, which will simulate the fully engaged brake caliper but still enable the load cell sensor to measure additional pedal pressure, which makes perfect trail braking possible. This is the same feeling you get in a real race car.

BRAKE THE WAY YOU LIKE

Because the load cell sensor is implemented with a gearing (ratio between pedal pressure and load cell deflection), any user using from the softest elastomer to the hardest elastomer will experience the full load cell resolution of around 4000 points in only 12mm inside the M.L.C.P.C cylinder from released pedal to 2nd stage. That is a resolution of 1/5th of a human hair.

We have made this adjustable, so you can have the feeling just the way you like it – and just like your favorite car. Using the RaceHub software, you can also adjust your dead zone on the brake pedal. This allows you to rest your foot on the pedal without getting inputs to the game

REVIEWS

12:36
DAVE CAM
15:37
COYOTE RACING

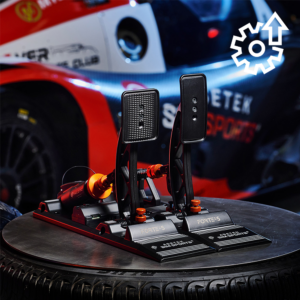

UPGRADE WHEN YOU LIKE

We aim to lead the industry – not only in quality but also in innovation. Our goal is to transform the way you acquire, use, and upgrade your sim racing hardware, providing a future-proof platform that facilitates simple and easy upgrades, allowing you to easily upgrade to Invicta Pedals.

This platform philosophy benefits you, us, and, most importantly, the environment by promoting the reuse of existing products and minimizing waste.

LEARN MORE

THE SOFTWARE BEHIND YOUR SUCCESS

RaceHub™ is our central software for calibrating and adjusting Asetek Racing™ products to suit your exact needs.

Tailoring your hardware settings is crucial for achieving consistency in every performance, and that’s why RaceHub™ comes with an extensive list of features to help you achieve your goals in the simulator.

Effortlessly calibrate and adjust your throttle, brake, and clutch within seconds. All calibrations and adjustments are automatically saved in our EPROM (Erasable Programmable Read-Only Memory), saving you time for future races.

SPECIFICATIONS

TECH SPECS

FORTE® S-SERIES BRAKE AND THROTTLE

  • Design: Exquisite, radical, and minimalistic industrial Danish design (Registered Community Design No. 009148265-0001/0002/0003)
  • Material: All-black anodized aluminum pedal base and pedal arms with CNC machined contrast cut surfaces
  • Brake System: M.L.C.P.C. (Mechanical Load Cell Powered Cylinder) patent-pending brake cylinder
  • Brake Sensor: Load cell sensor
  • Max Brake Force: Up to 180 kg force at pedal plate
  • Pedal Arm Strength: Designed for 200 kg force
  • Burst Pressure: Up to 700 kg
  • Brake Adjustability: Adjustable pedal stop, travel, and initial touch hardness
  • Elastomers: 2 interchangeable elastomers included
  • Brake Features:
    • Two-stage brake system mimicking hard and soft stages of a real racecar, with integrated physical stop and expansion chamber
  • Throttle Sensor: 16-bit magnetic wireless hall TPS (Throttle Position Sensor)
  • Throttle Adjustments: Adjustable hardness, travel, and stop
  • Throttle Curves: Fully customizable in RaceHub™
  • Throttle Spring: Interchangeable spring for increased pedal hardness
  • Pedal Plate Adjustments: Adjustable vertically

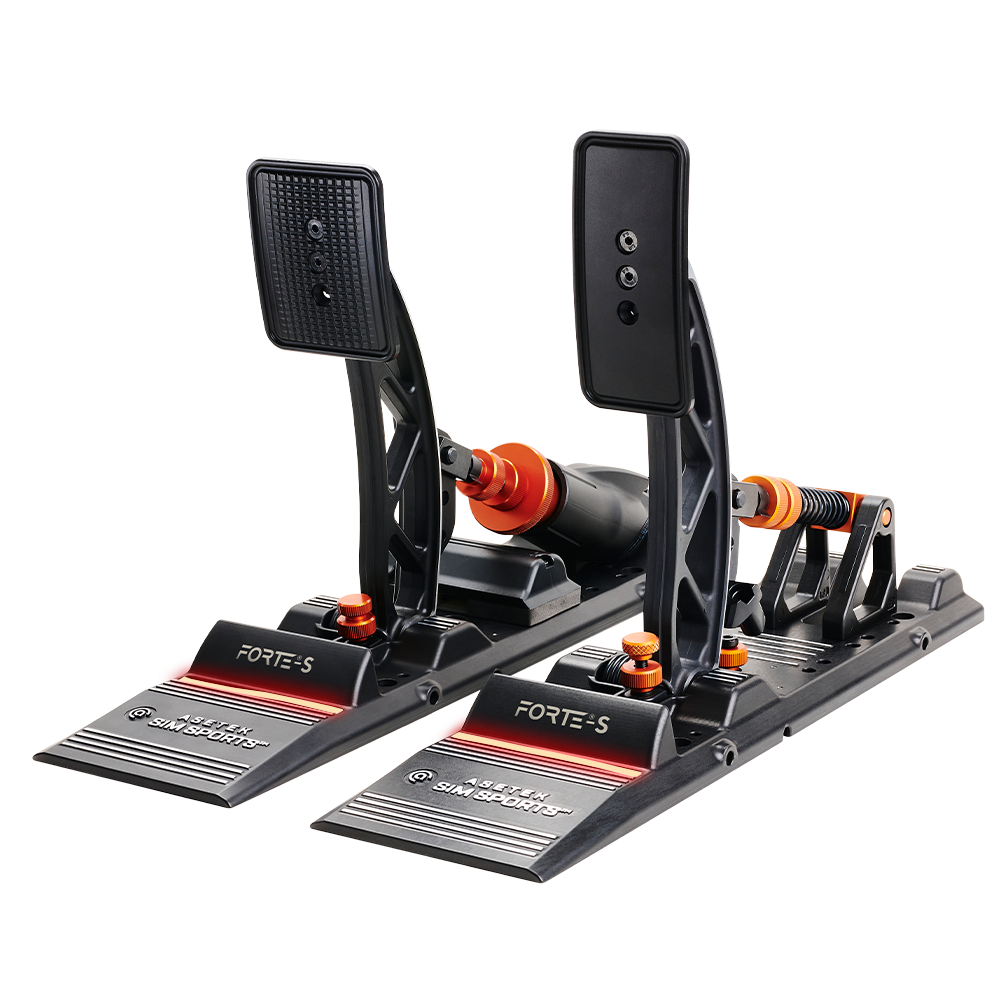

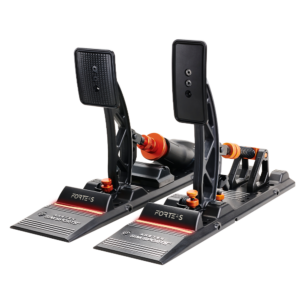

  • RGB LEDs: Integrated and configurable in RaceHub™
  • Electronics: Inhouse-developed 16-bit electronics
  • Software: Asetek Racing™ RaceHub™
  • Calibration Memory: EPROM onboard memory saves all settings and calibrations
  • USB Connection: Single USB connection to PC regardless of 2 or 3 pedal setup
  • Mechanical Features: All adjustable mechanical features are colored orange by default
  • Durability Testing: Tested to +1,000,000 activations



  • Dimensions:
    • Depth: 457 mm
    • Width: 212 mm
    • Height: 256 mm
    • Weight: 3 kg



  • Platform:
    • PC: Yes
    • Operating System: Windows 11



  • Compatibility:
    • Wheelbases: Compatible with all major sim racing wheelbases
    • Clutch System: Compatible with Asetek Racing™ clutch pedal add on



COMPATIBLE PRODUCTS

Forte® S-Series Brake and Throttle is compatible with the following products and product categories:


Pedals Comparison Chart

USER MANUAL

FAQ

FAQ

Q: What makes the Forte® S-Series Brake and Throttle feel like a real race car pedal set?
A: The pedals use the patent pending M.L.C.P.C.™ brake system with a realistic two stage design that mimics the soft and hard braking phases found in real race cars. Combined with adjustable elastomers and up to 180 kg brake force sensing, the pedals deliver an authentic and highly consistent racing experience.

Q: Can I adjust the pedal spacing and pedal feel?
A: Yes. The Forte® S-Series Pedals allow adjustable spacing between the brake and throttle up to 100 mm apart. You can also customize pedal hardness, travel, pedal stops, and throttle curves to perfectly match your driving style and simulator setup.

Q: Does the Forte® S-Series support custom throttle curves?
A: Absolutely. Using the Asetek Racing™ RaceHub™ software, you can fully customize throttle curves to simulate different driving conditions, such as linear throttle response for dry conditions or progressive throttle response for wet racing.

Q: How durable are the Forte® S-Series Pedals?
A: The pedals are built from all black anodized aluminum with die cast aluminum pedal arms and are designed and tested for more than 1,000,000 activations. This exceeds the durability standards of many real race cars.

Q: Is the Forte® S-Series compatible with my sim racing setup?
A: Yes. The Forte® S-Series is compatible with all major sim racing wheelbases on PC and connects through a single USB cable. The pedals are also compatible with the Asetek Racing™ clutch pedal add on and Invicta™ upgrade ecosystem.

Q: What software is used to configure the pedals?
A: The pedals are configured through Asetek Racing™ RaceHub™ software. Here you can calibrate brake pressure, adjust deadzones, customize RGB lighting, fine tune throttle curves, and save all settings directly to the onboard EPROM memory.

WHAT'S IN THE BOX

FORTE® S-SERIES BRAKE AND THROTTLE

  • Forte® S-Series Throttle (x1)
  • Forte® S-Series M.L.C.P.C. Brake (x1)
  • USB Type-A to USB Type-C cable 1.5m (x1)
  • USB Type-C to USB Type-C cable 1.5m (x1)
  • Throttle/Clutch extension cable 300mm (x1)
  • Throttle/Clutch extension cable 400mm (x1)
  • M6x5 Set screw (x2)
  • M6x20 bolt (x8)
  • M6 Slot nut (x8)
  • Washer (x8)
  • M6 Hex nut (x8)
  • Allen key, 3mm (x1)
  • Allen key, 5mm (x1)
  • Elastomer, Soft (x1)
  • Elastomer, Hard (pre-installed) (x1)
  • Throttle Spring, Medium (pre-installed) (x1)
  • Throttle Spring, Soft (x1)
  • Forte Pedal Face plate for Clutch (x1)

COMPATIBILITY

SUPPORTED GAMES

SELECTED SUPPORTED GAMES

  • Assetto Corsa
  • Assetto Corsa Competizione
  • DiRT Rally
  • DiRT Rally 2.0
  • F1 Series
  • iRacing
  • Project Cars 2
  • rFactor 2
  • And many more (all games that accept direct input devices)

This is just a selection of game titles supported by the Forte® S-Series Brake and Throttle. Some titles may not be supported.
