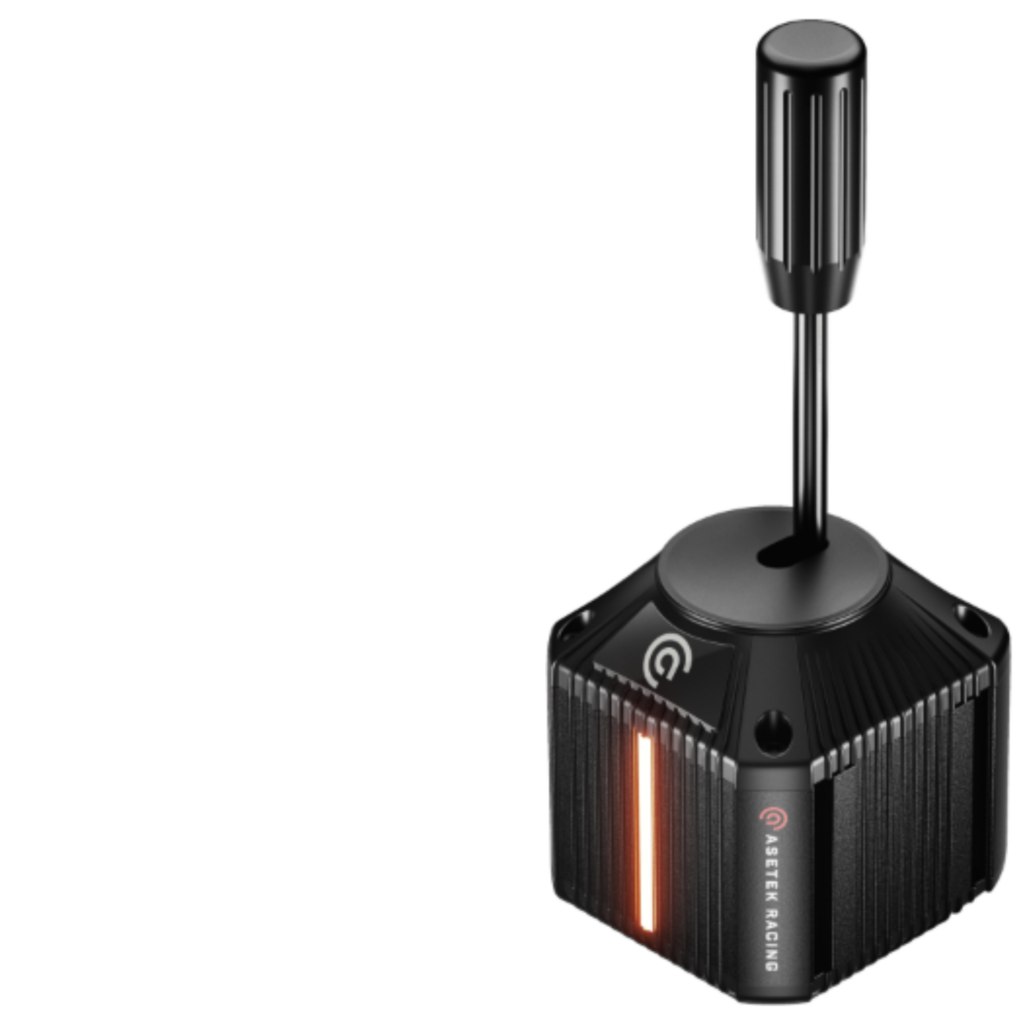

All-Metal Design for Ultimate Durability
Aluminum and steel construction and a rigid lever design deliver zero flex, long-term durability, and a solid, confidence-inspiring pull every time you reach for the brake.

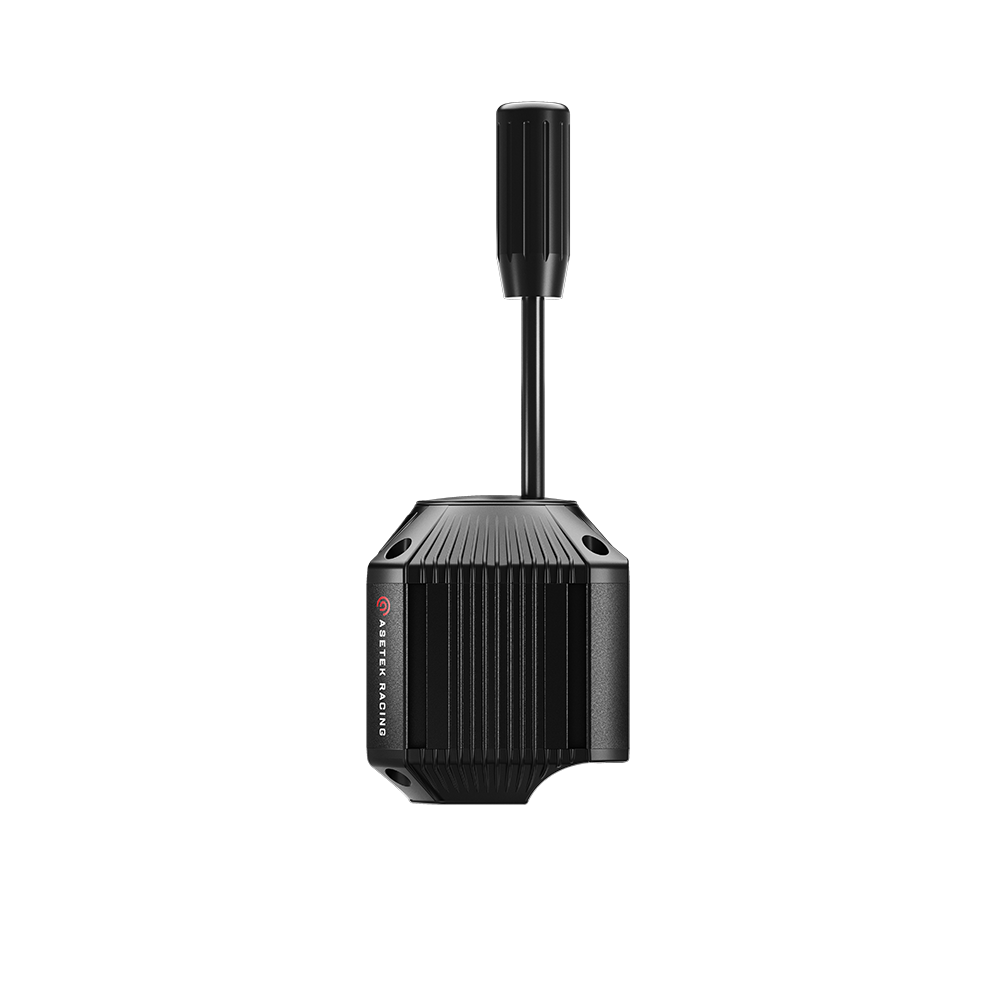

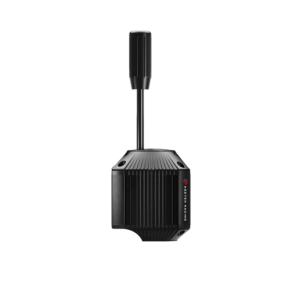

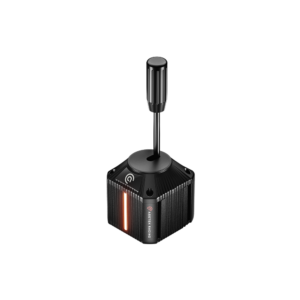

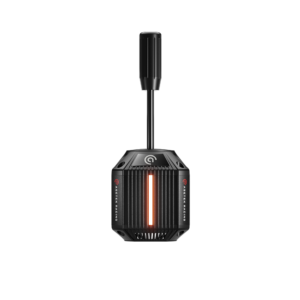

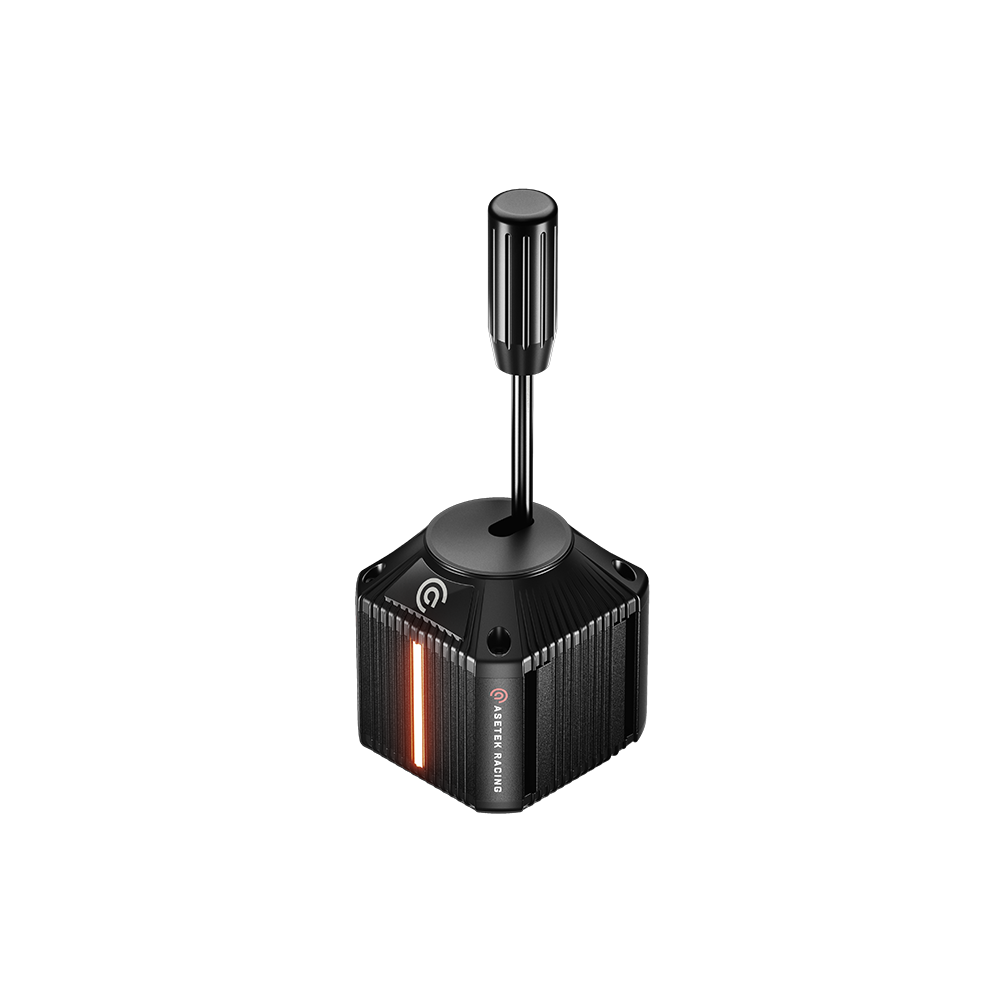

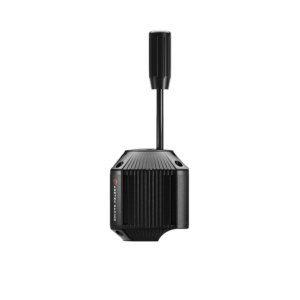

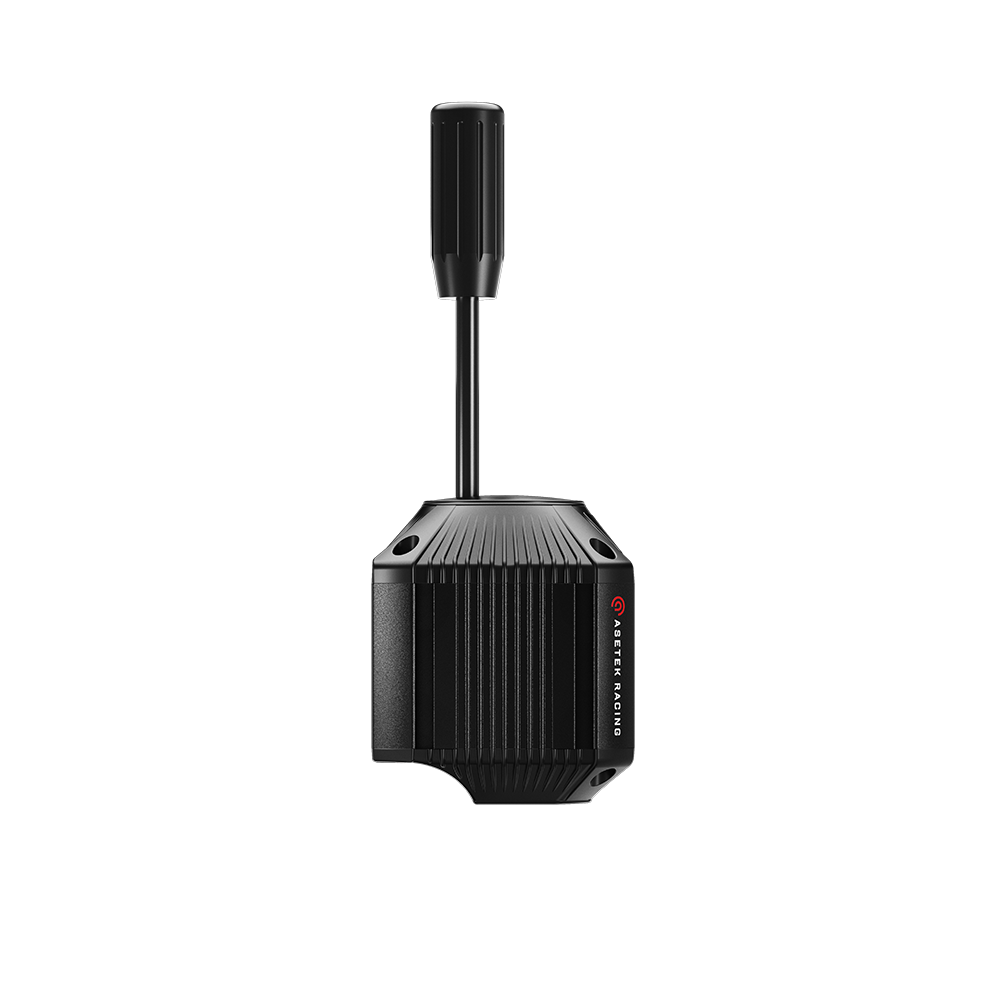

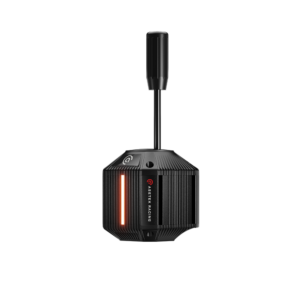

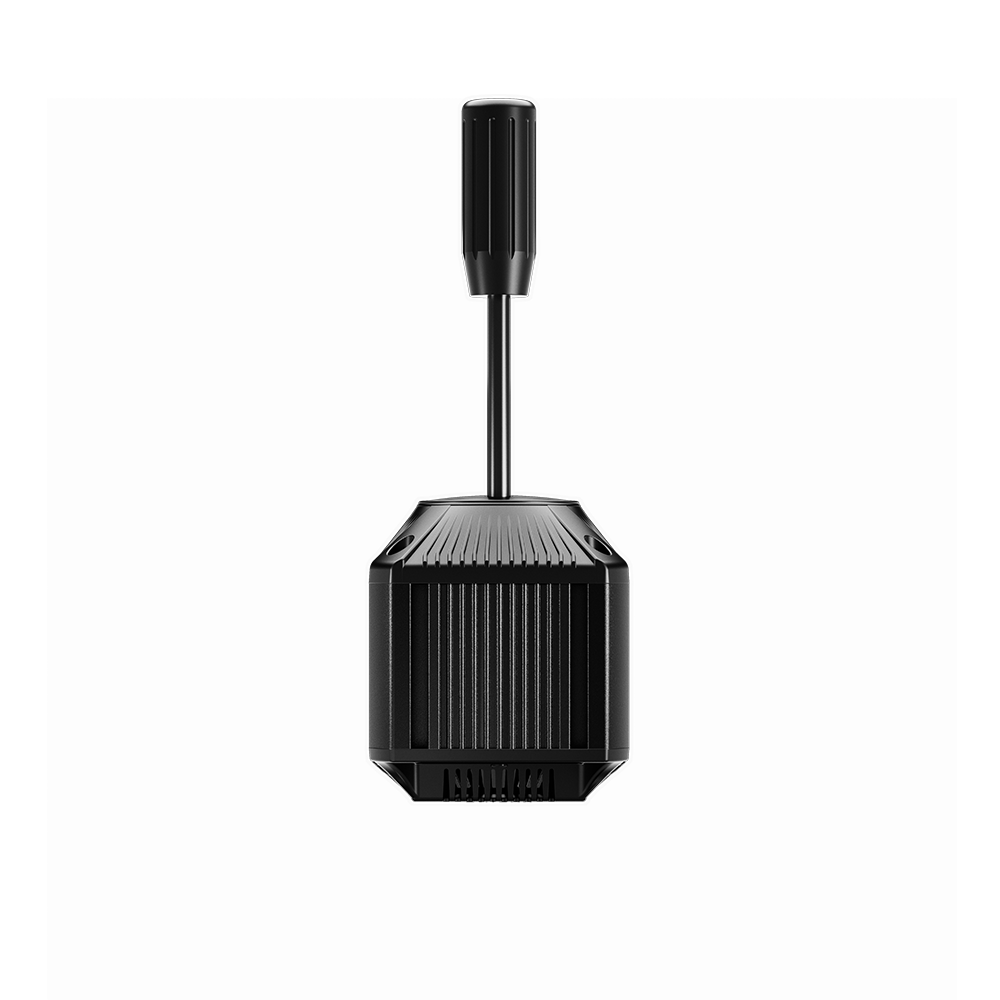

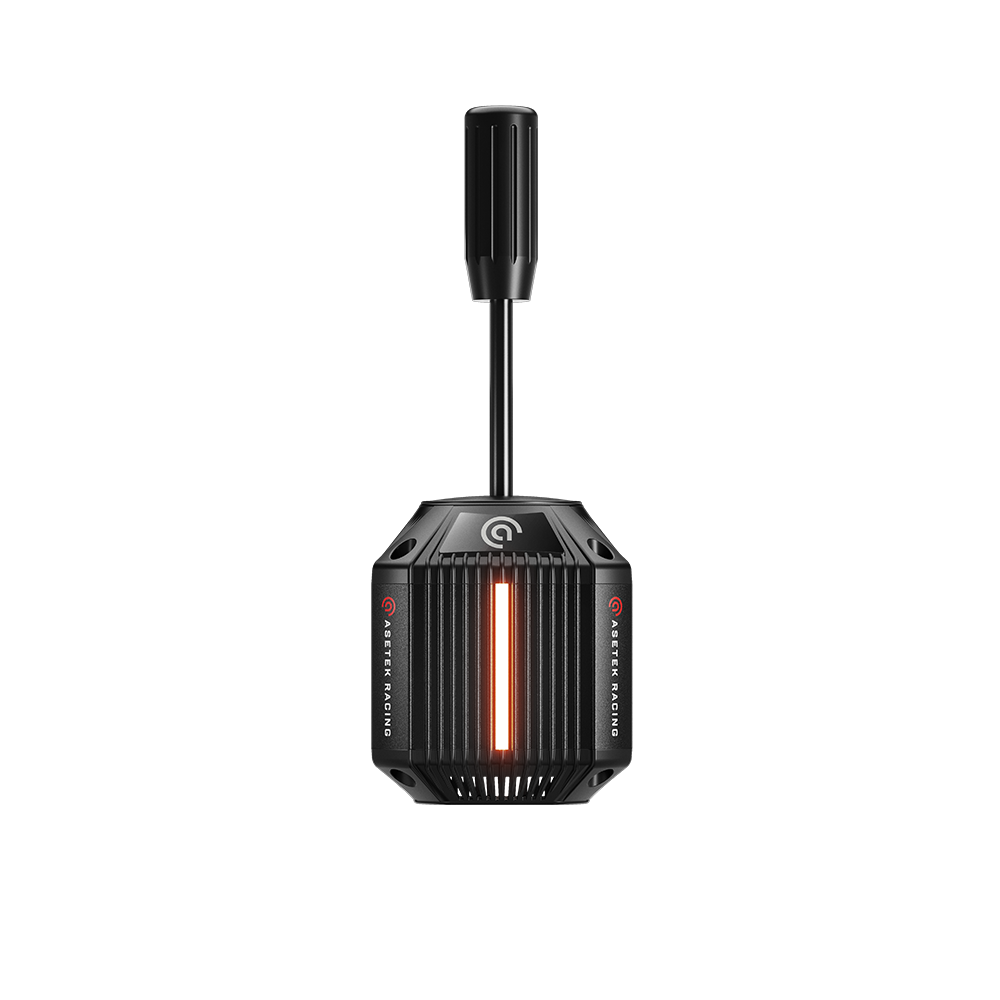

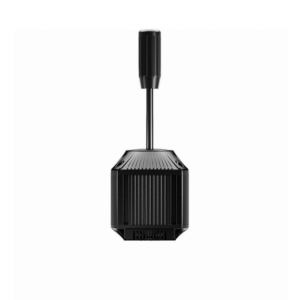

Load Cell Handbrake
Compatibility:
PC
$ 179.00 Excl. VAT $ 179.00

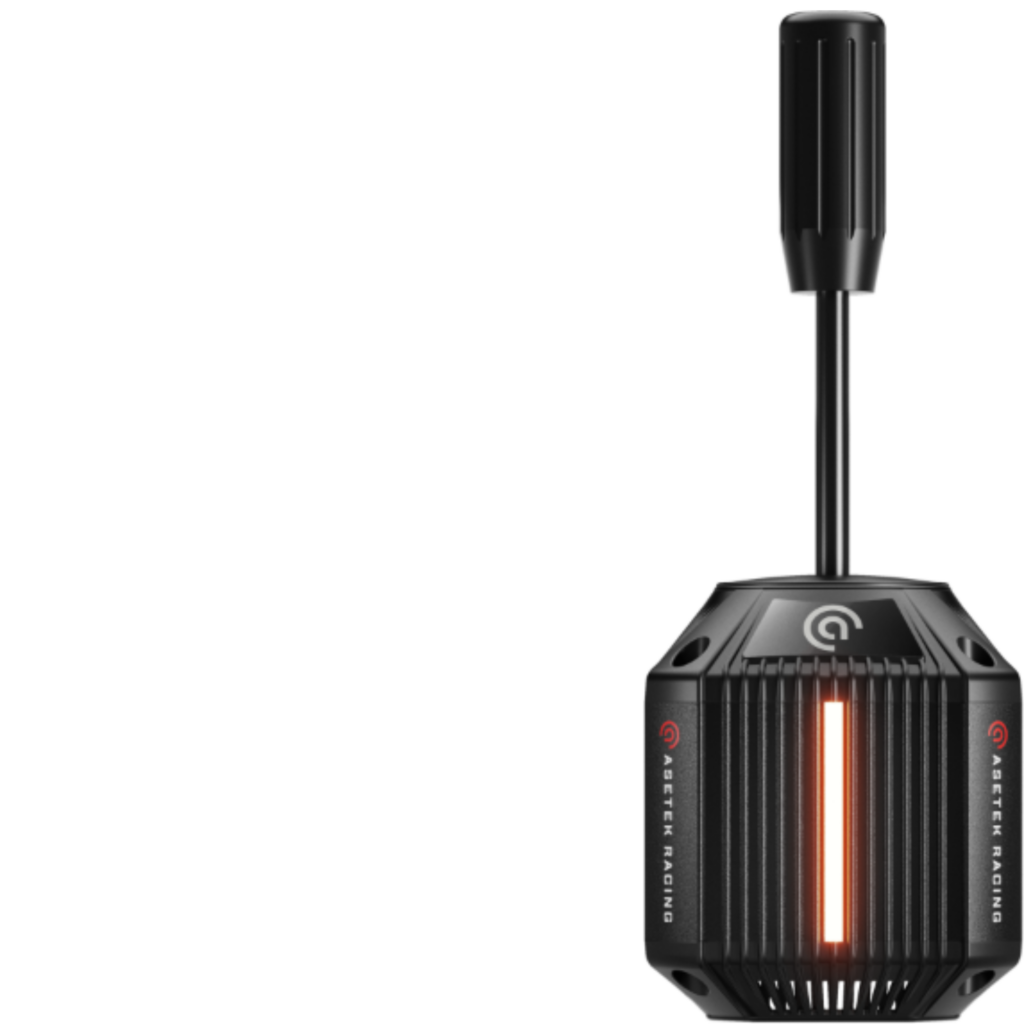

200 kg of load-cell precision. A progressive spring and elastomer stack. Ultra-precise response and feel. Brake like the pros.
Every aspect of your racing experience matters. Braking seems simple; stop or go. But when you experience our high-precision handbrake built for exacting car control, you won’t want to drive any other way. Featuring a 200 kg load-cell for precise force-based input and tuneable resistance, it’ll keep you in control whether you’re throwing the car sideways or drifting corners.
COMPLETE YOUR SETUP
Mount Up, It’s Time to Race
Mount the Asetek Racing Load Cell Handbrake how you want; pair it with the new Asetek Racing Dual Mode Shifter, swap sides, and move from side-mount to table clamping when it suits you. Your sim your way.

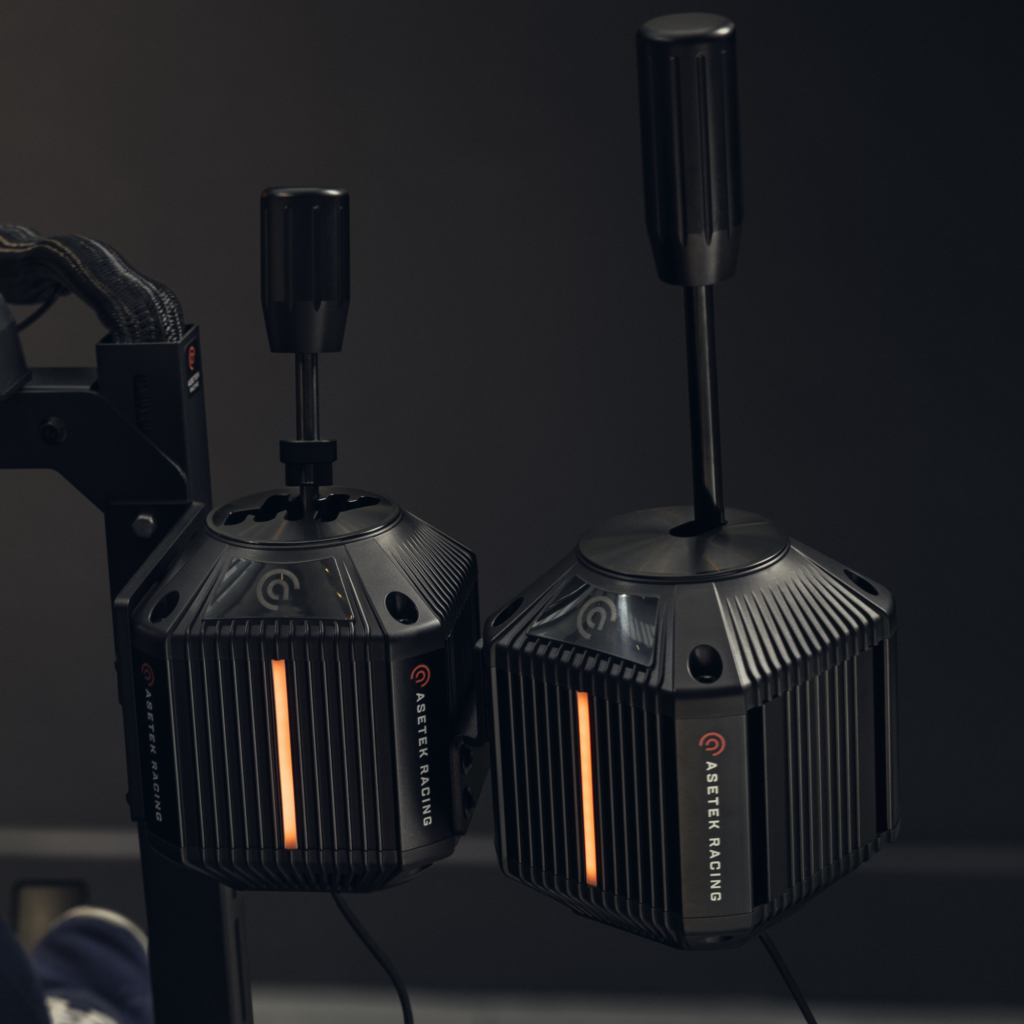

Pair the Load Cell Handbrake with the new Asetek Racing Dual Mode Shifter.
Multi-Platform Compatible
From PC to Xbox, Experience precise handbrake control no matter where you race. The Load Cell Handbrake is Xbox ready with an Asetek Racing Xbox-compatible wheelbase and steering wheel, ensuring seamless integration across supported platforms.
Ready with an Asetek Racing Xbox-compatible wheelbase and steering wheel.
Engineered in Denmark,
Built to win
Every Asetek Racing product is designed and engineered in Denmark, and delivers exceptional realism and race-winning performance. No cut corners, no compromises.
THE SOFTWARE BEHIND YOUR SUCCESS
RaceHub™ is our central software for calibrating and adjusting Asetek Racing™ products to suit your exact needs.
Tailoring your hardware settings is crucial for achieving consistency in every performance, and that’s why RaceHub™ comes with an extensive list of features to help you achieve your goals in the simulator.
Effortlessly calibrate and adjust your throttle, brake, and clutch within seconds. All calibrations and adjustments are automatically saved in our EPROM (Erasable Programmable Read-Only Memory), saving you time for future races.
SPECIFICATIONS
TECH SPECS
| Specifications | |
| Load Cell | |
| Maximum Load | 200 kg (440.92 lbs) |
| Resolution | 16 Bit |
| Technology | |
| Two-Stage Resistance System | Tunable elastomer and spring stack |
| Modes/Software | |
| Modes | Analog / Digital |
| Software | RaceHub |
| Mounting | |
| Mounting Holes | 4xM6 threaded T-nuts |
| Mounting | Both left-hand and right-hand drive |
| Pattern Width | 80 mm (3.15 in) |
| Pattern Length | Variable length 30–69 mm (1.18–2.72 in) |
| Dimensions | |
| Size | 133 × 132 × 360 mm (5.24 x 5.20 x 14.17 in) |
| Weight | 2.5 kg (5.51 lbs) |
| Gear Knob | M10 |
| Connections | |
| Connection to Host | USB Type-C |
| Power Input | 5 V, 500 mA (Max. 2.5 W) |
| Warranty | |
| Warranty | 24 Months |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) (Room Temperature) |
| Tested | 1,000,000 Brake Cycles |
USER MANUAL
- Load Cell Handbrake User Manual
FAQ
FAQ
Q: What makes the Load Cell Handbrake different from a traditional handbrake?
A: Unlike conventional potentiometer-based handbrakes, the Asetek Racing Load Cell Handbrake uses a 200 kg load cell to measure braking force rather than lever position. This provides more precise, consistent, and repeatable input, giving you greater confidence during rally, drifting, and other precision driving scenarios.
Q: Can I adjust the braking feel?
A: Yes. The Load Cell Handbrake features a tunable two-stage resistance system with interchangeable elastomers and springs, allowing you to customize the stiffness and braking profile to match your driving style and simulate the feel of a real hydraulic handbrake.
Q: Does the Load Cell Handbrake support both analogue and digital input?
A: Yes. With the push of a button, you can instantly switch between pressure-based analogue mode for progressive control and digital mode for on/off handbrake operation, making it suitable for a wide variety of racing simulators.
Q: Is the Load Cell Handbrake compatible with Xbox?
A: Yes. The Load Cell Handbrake is Xbox ready when used together with a compatible Asetek Racing Xbox wheelbase and steering wheel, while also offering full compatibility for PC racing setups.
Q: Can I mount the handbrake on either side of my sim rig?
A: Yes. The handbrake supports both left-hand and right-hand drive configurations and features flexible mounting options using 4× M6 threaded T-nuts with an adjustable mounting pattern, making it easy to integrate into most sim racing cockpits.
Q: Can I customize the Load Cell Handbrake in RaceHub?
A: Yes. Using RaceHub™, you can calibrate and fine-tune your handbrake to suit your preferences. Your settings are automatically saved to the built-in EPROM memory, so they remain stored even when switching between different racing simulators or games.
WHAT'S IN THE BOX
LOAD CELL HANDBRAKE
- Dual Moder Shifter (x1)
- Cockpit Mounting Bracket (x1)
- USB-A to USB-C Cable (x1)
- USB-C to USB-C Cable (x1)
- Connection Bracket
