Initium Direct Drive Wheelbase EU

Compatibility:
PC

293,28  Excl. VAT 293,28

The Asetek Racing Direct Drive Wheelbase puts you in the driver’s seat, thanks to its 5.5 Nm force-feedback servo motor and quality craftsmanship. Take your step into the racing big leagues.

In stock and ready to ship
Resellers
COMPLETE YOUR SETUP

Low latency, Immediate Response

Don’t let your sim setup come between you and the tarmac. Enjoy low latency thanks to the Initium’s responsive motor controller that enables market-leading responsiveness.

Quality Danish Engineering

Designed and engineered in Denmark, and made with quality components that won’t let you down.

IMMERSIVE DRIVING EXPERIENCE

The Initium’s powerful 5.5NM force feedback servo motor and low-latency motor controller enables unparalleled racing responsiveness.

CONNECTED TO YOUR CAR

Feel every bump, every curve, every turn. Direct drive force feedback gives racers the ultimate realistic driving experience from the moment they touch the wheel.

16,384 DEGREES OF RESPONSIVENESS

No moment missed, no effort wasted. Enjoy a super-smooth racing experience provided by the Initium’s 14bit data encoder that gives you unmatched detail on the track, delivering driving feedback for every 0.022 degrees of wheel movement.

Premium Craftsmanship

Sleek and minimalist aluminum housing provides an unbeatable experience that elevates racing sims from a game to something else entirely.

Bring Your Driving Experience Together

With 5 peripheral connection ports, let the Initium Direct Drive Wheelbase server as your racing hub for your other Asetek peripherals.

Easy-To-Install 8Nm upgrade

Want to bring more torque to your racing experience? Enjoy a plug & play upgrade to 8Nm of force with the Initium Wheelbase Boost Kit. No need for a whole new configuration to get more out of your races (Upgrade kit sold separately).

THE SOFTWARE BEHIND YOUR SUCCESS

RaceHub™ is our central software for calibrating and adjusting Asetek Racing™ products to suit your exact needs.

Tailoring your hardware settings is crucial for achieving consistency in every performance, and that’s why RaceHub™ comes with an extensive list of features to help you achieve your goals in the simulator.

Effortlessly calibrate and adjust your throttle, brake, and clutch within seconds. All calibrations and adjustments are automatically saved in our EPROM (Erasable Programmable Read-Only Memory), saving you time for future races.

SPECIFICATIONS

TECH SPECS

Key Features

  • 5.5Nm Direct Drive Force Feedback Servo Motor
  • 14-bit data encoder
  • Durable aluminum housing
  • PC compatible
  • Upgradeable to 8Nm

Power & Performance

  • Direct Drive: Yes
  • Max Torque: 5.5 Nm
  • Power Supply: 96W

Encoder & Resolution

  • Bit Resolution: 14-bit absolute
  • Steps per turn: 16,384 points
  • Resolution: 0.022 degrees
  • Control Software: RaceHub

Mounting & Installation

  • Mounting Holes: 4x M6 threaded T-nuts
  • Pattern Width: 87 mm
  • Pattern Length: Variable, 30–100 mm
  • Mounting Schematics
  • Weight: 5.7 kg
  • Dimensions: 133 × 132 × 235 mm
  • Operating Temperature: 0° to 40°C (room temperature)
  • Warranty: 24 months

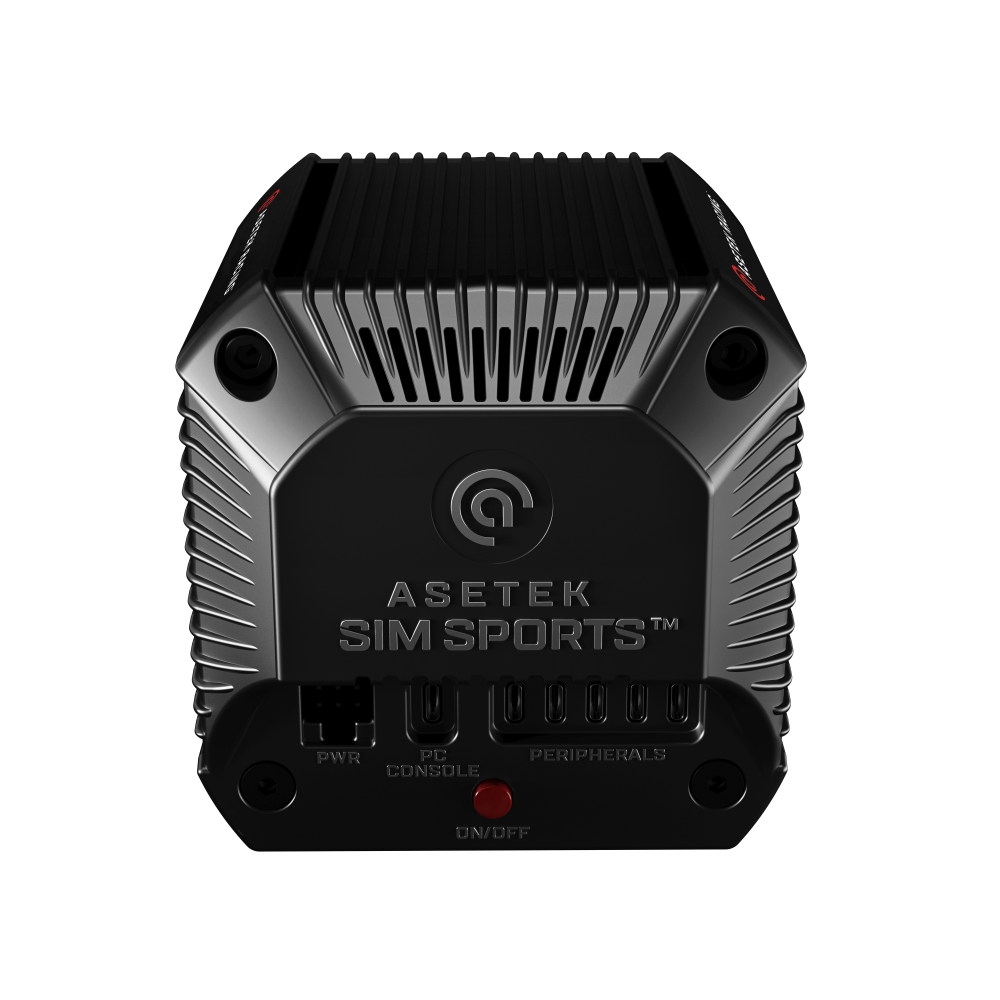

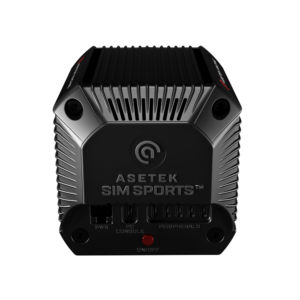

Connectivity

  • USB-C connection
  • Asetek Quick Release: Wheelbase side
  • Asetek Peripherals: 5 connections

FAQ

FAQ

Q: What platforms is the Initium Direct Drive Wheelbase compatible with?
A: The Initium Direct Drive Wheelbase is compatible with PC and works with RaceHub software for calibration and customization.

Q: How much torque does the Initium Wheelbase provide?
A: It delivers up to 5.5 Nm of direct drive torque through its responsive force feedback servo motor.

Q: Can the Initium Wheelbase be upgraded to provide more torque?
A: Yes. The wheelbase can be upgraded to 8 Nm using the Initium Wheelbase Boost Kit, without replacing the wheelbase or changing your complete setup.

Q: Which Asetek steering wheels are compatible with the Initium Wheelbase?
A: It is compatible with the Initium Wheel, La Prima Formula Wheel, Forte Formula Wheel, and selected La Prima and Forte Formula and GT Button Boxes. It is not compatible with the Forte Formula Pro Steering Wheel or the Invicta Formula Steering Wheel.

Q: Can other Asetek peripherals be connected directly to the wheelbase?
A: Yes. The Initium Wheelbase includes five peripheral connection ports, allowing it to serve as the central hub for compatible Asetek SimSports equipment.

Q: What is included in the box?
A: The box includes one Initium Wheelbase, one table clamp, one power supply, one USB C to USB C cable, and one region specific AC cable. The EU version includes an EU power cord.

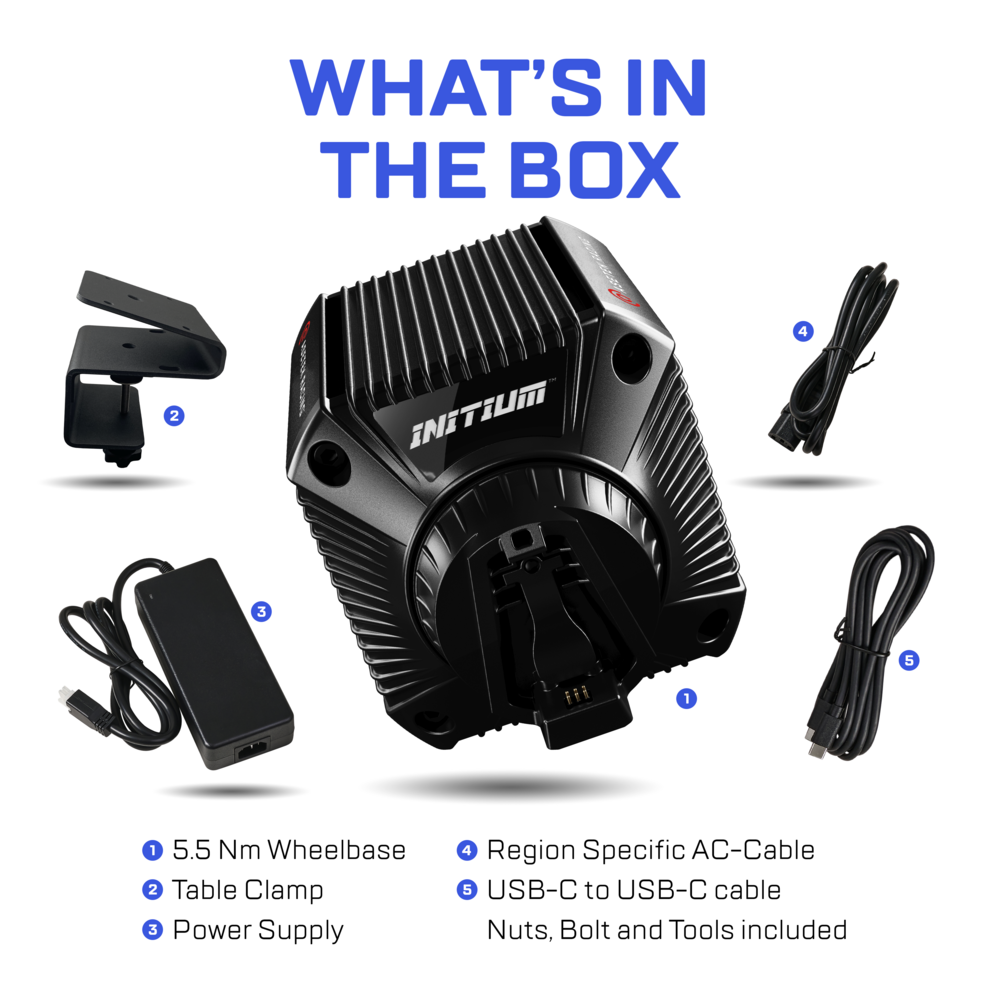

WHAT'S IN THE BOX

INITIUM DIRECT DRIVE WHEELBASE EU

  1. 5.5 Nm Wheelbase
  2. Table Clamp
  3. Power Supply
  4. Region Specific AC-Cable
  5. USB-C to USB-C cable

Nuts, Bolt and Tools included.
