You can choose to have the clutch pivot in two positions. As default, the pivot bracket is mounted in the most forward position, furthest away from the pedal arm. By moving the clutch
pivot bracket, you can change the bite point relative to pedal travel.

Attention: Please be aware that edges on the rod clevis can be sharp

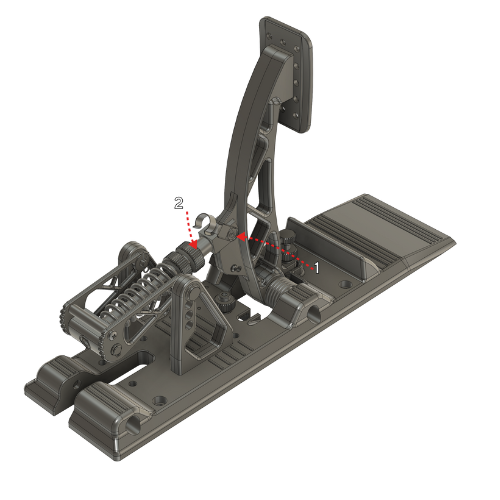

1. Remove the rod clevis lock pin.

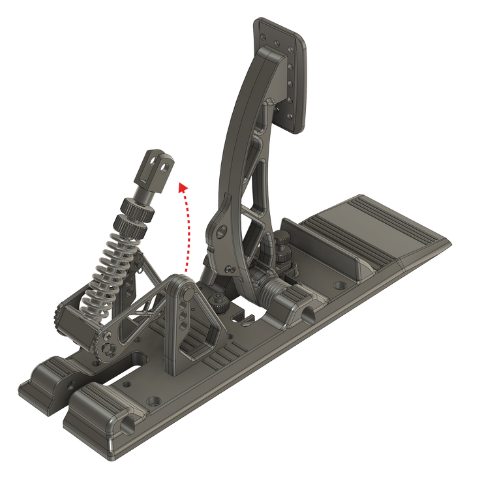

2. Lift the rod

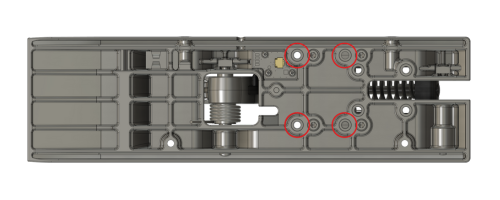

3. Unscrew the four screws underneath the clutch baseplate

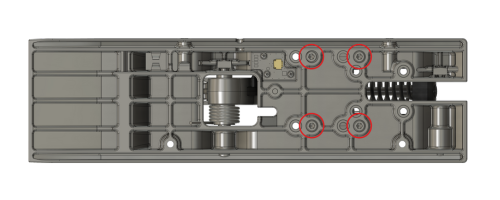

4. Align the pivot bracket with the adjacent holes underneath the baseplate.

5. Screw the four screws underneath the baseplate back into the pivot bracket.

6. Make sure to have the pedal angle in the most backwards position (see section Clutch Pedal Angle Adjustment)

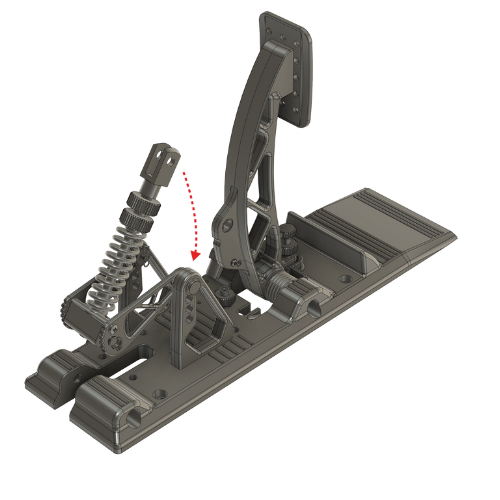

7. Lower the rod and re-insert the rod clevis lock pin.



Attention: Please be aware that edges on the rod clevis can be sharp

8. Adjust your pedal angle to the desired position.
