Pedal Face Plate Adjustments (Invicta Pedals)

Updated on February 29, 2024

In this video, you’ll get a short introduction on how to adjust the faceplates on the Invicta™ Sim Racing Pedals. The Pedal Face Plates can be adjusted along the X and Y-axis. It will allow the pedals to accommodate a variety of different shoe sizes and increase performance and comfort for anyone using the pedals.

To adjust the position, follow these easy steps:

  • 1. Remove the screws with a hex key from the pedal faceplates
  • 2. Align the pedal arms’ holes with the pedal face plates’ desired holes.
  • 3. Insert and fasten the screws with a hex key.

Note: The screws can bite hard, so be careful not to overtighten or have the tool slip. Recommended torque: 2nm

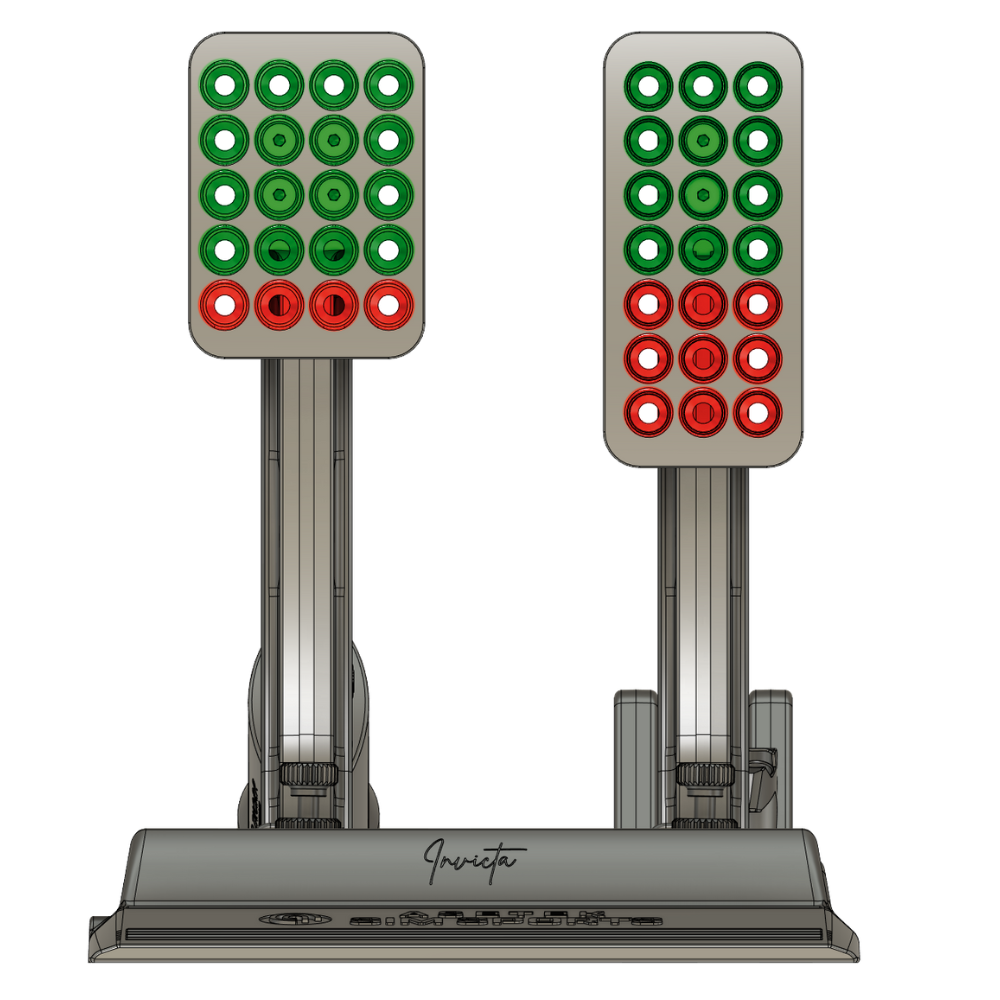

Attention: Only use the holes marked green for mounting.
