Throttle Spring Replacement (Pagani Pedals)

Updated on March 5, 2024

To give you a variety of different customization options, that allow you to bridge the gap between sim racing and real-world racing with precision, we include two (2) springs with the Pagani pedals. One, the stiffer option, is preinstalled in the throttle. The other, is in the supplied box of accessories.

Replacing the throttle spring is a quick and easy process.

Simply follow these seven (7) steps:

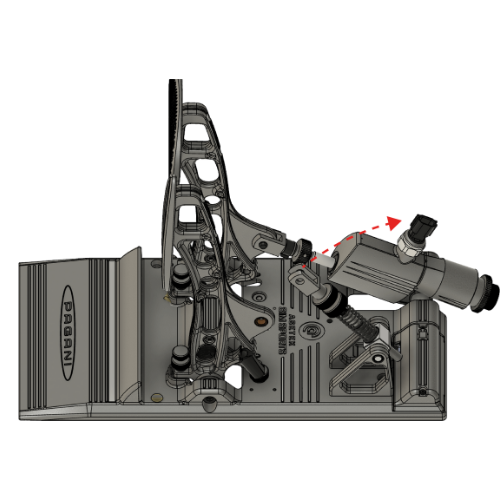

1. Remove the rod clevis lock pin.

2. Lift the rod free of the pedal arm.

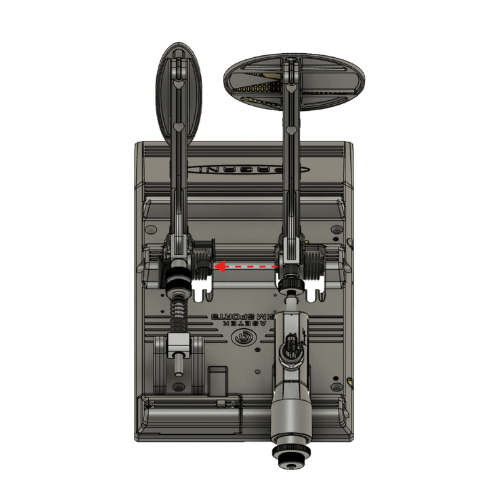

3. Remove the rod with spring from the pivot bracket.

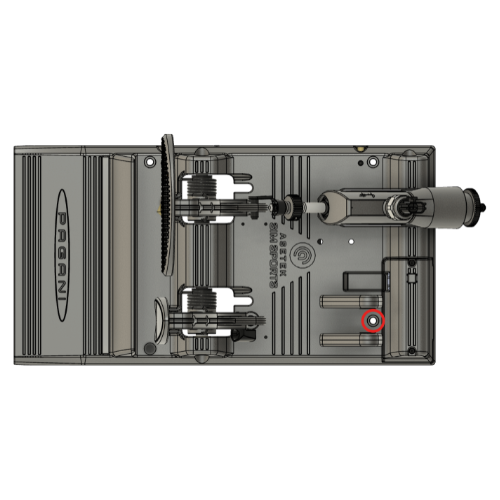

a. At this point you can also easily access the installation point beneath.

4. Remove the spring from the rod.

5. Install your new spring on the rod.

6. Reinsert the rod with spring, into the pivot bracket

7. Reinsert the rod clevis lock pin, and make sure it is locked firmly into place.
