40-035-0035007

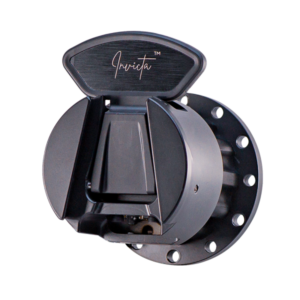

Invicta™ Quick Release Adapter

129,99

Excl. VAT 129,99

Unleash the possibilities with the Invicta™ Quick Release Adapter!

We realize that many sim racers have personal preferences for their steering wheel so instead of locking you into a specific eco-system, we offer our Quick Release Adapter, meaning you can use your favorite steering wheel with your Asetek SimSports® Wheelbase.

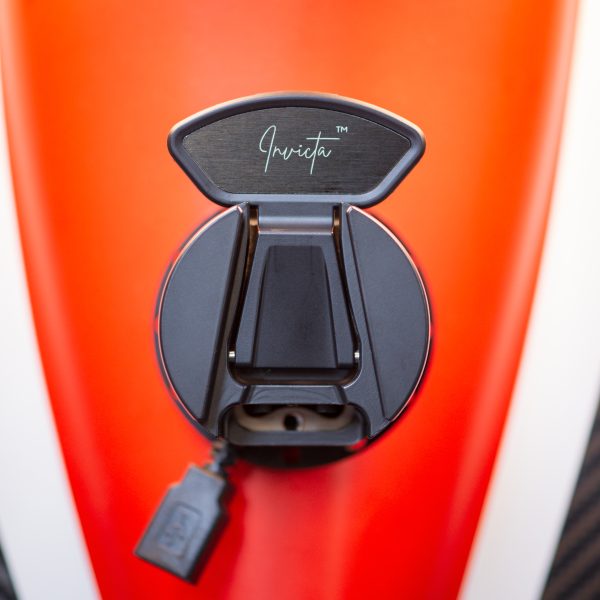

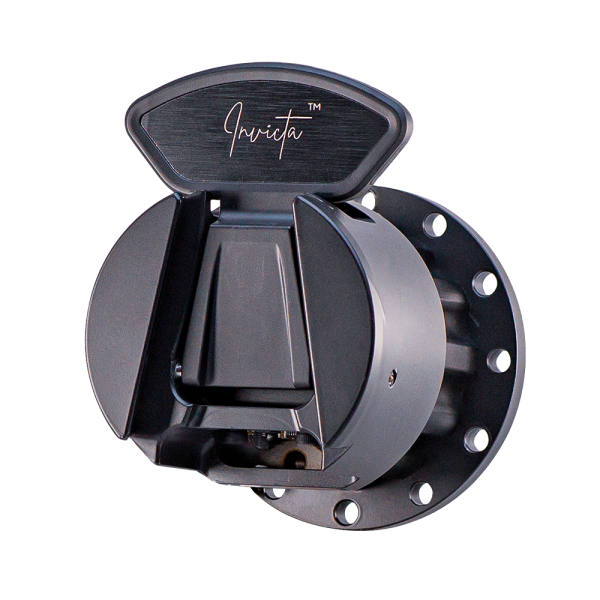

Changing steering wheels has never been easier. Once you have finished installing the Quick Release Adapter, simply press a paddle to detach the wheel from the wheelbase, and it will effortlessly be in your hands. As easy as shifting gears!

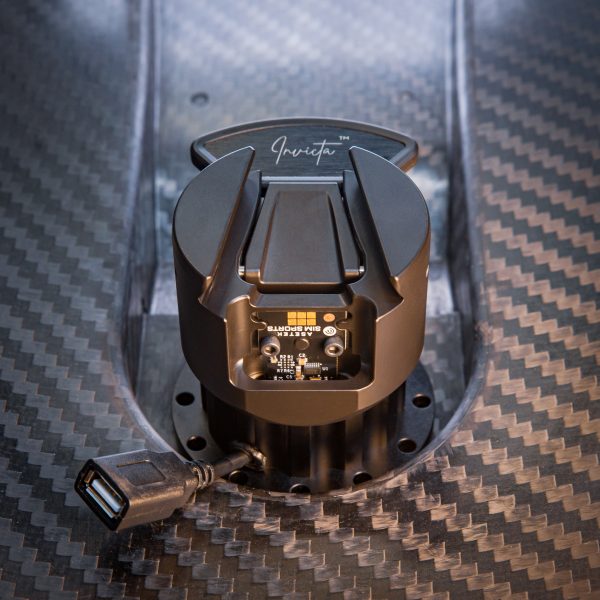

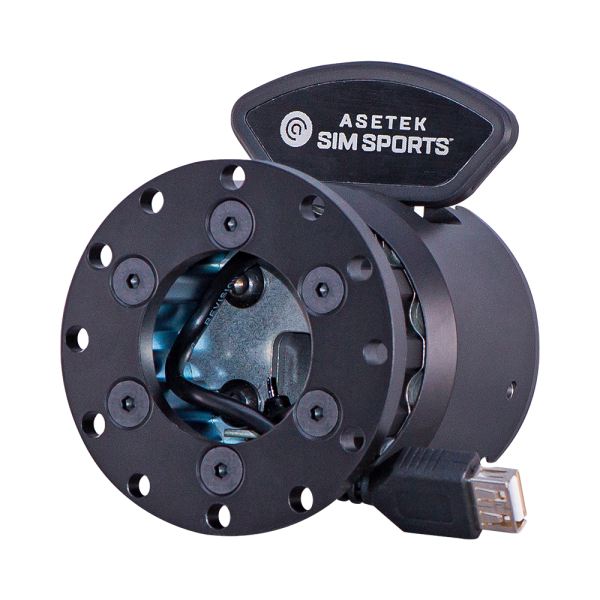

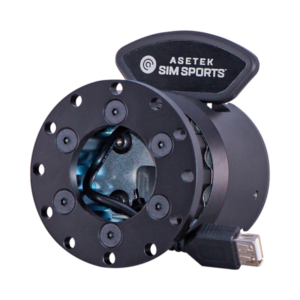

The Invicta™ Quick Release  adapter is a sturdy, zero play, all aluminum quick release with an optional USB connection, meaning you can connect your wheel directly to your Asetek SimSports® Wheelbase through the QR.

Featuring both at 6×70 mm and 2″ bolt pattern, maximizing compatilibity.

“While we can guarantee a perfect fit to any Asetek SimSports wheelbase as well as the industry standard mounting hole pattern we can NOT assume responsibility for compatibility with your 3rd party steering wheel. Neither electronically nor mechanically. We follow industry standards for USB, but we do not have the resources to test every steering wheel on the market. We are also not in control over future hardware and firmware revisions of 3rd party products, which may or may not compromise compatibility. Please understand and accept this BEFORE buying.”

Read more

In stock

Stock status: High

divider

Partnering For Ultimate User Flexibility

Not only will you, by the end of June, be able to buy an Invicta Quick Release Adapter from our Asetek SimSports webshop or your preferred reseller and fit it yourself to any wheel you like. We’ve also partnered with some of the best wheel manufacturers in sim racing.

That means you will be able to buy one of their wheels with our quick release fitted right from their factory! This option allows you to have the smoothest and most flexible experience straight out of the box when switching between your favorite wheels – be they powered or non-powered wheels.

The Invicta Quick Release will be the same and have the same cool features whether you buy it as a separate item from our Asetek SimSports webshop, from a reseller, or if you buy it as an integrated part of one of our partners’ wheels.

The only difference between buying it as a separate item or as integrated with a partner wheel will be that the separate Invicta Quick Release can be mounted with optional power and data. The integrated Invicta Quick Release will be offered as a pre-installed item with integrated electronics, which can be purchased directly from our partner-wheel manufacturers.

*The way of integration of the Invicta Quick Release may have slight variations from manufacturer to manufacturer, depending on how they choose to integrate it. If you want to know more about how a specific manufacturer is planning to pair their steering wheels with the Invicta Quick Release, please reach out to the specific manufacturer, as it is up to them. The same applies if you have questions about which specific wheels from a manufacturer will be provided with the option of an integrated Invicta Quick Release, or about the timeline of these.

As of now, the manufacturers who wish to commit to providing their own wheels with the option of an integrated Invicta Quick Release Adapter are:

divider

Tech Specs & Dimensions

  • Exquisite, radical, and minimalistic industrial design
  • Designed and manufactured in Denmark
  • All black anodized aluminium
  • Three lengths included: 80 mm, 150 mm, and 200 mm (total Quick Release lengths)

Dimensions

75 x 78 x 80/150/200 mm

divider

Guides & Mounting

  • Manual

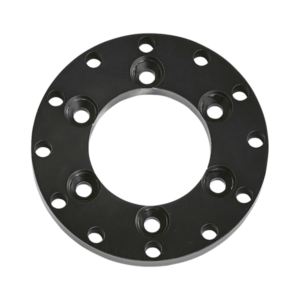

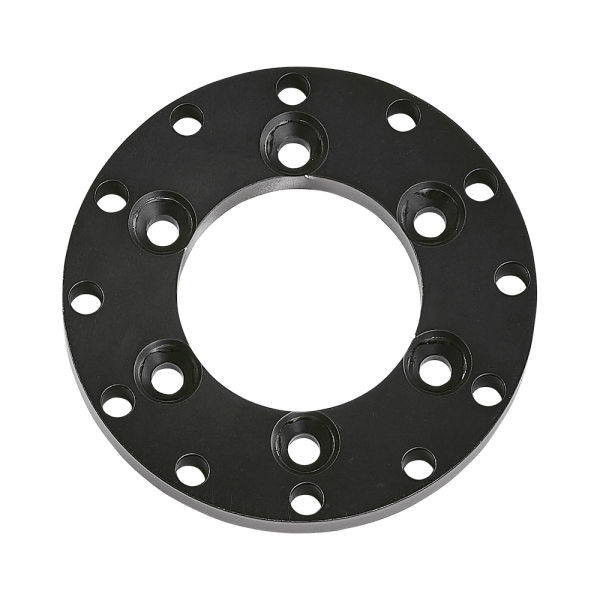

  • Outer mounting holes: 6 x 70 mm bolt pattern. 6 x M5x12 screws included
  • Inner mounting holes: 3/6 x 50,8 mm M5 threaded. Used when mounting from inside the wheel. 6 x M5x12 countersunk screws included (pre-installed)

divider

Compatibility

During development and production, we’ve tested the Invicta Quick Release with a wide variety of steering wheels from both our official partners as well as other manufacturers. As such, we can guarantee the USB 2.0 connection and the mechanical fit of the 70 mm hole pattern and the quick release mechanism itself.  What we cannot guarantee however, is that any and all wheel manufacturers follow the USB 2.0 standards
