Clutch Pedal Face Plate Adjustments

Updated on March 5, 2024

Attention: Do not use a power drill, as this may damage the screws.

Invicta™ pedal face plates can be adjusted along the X and Y-axis. It will allow the pedals to accommodate a variety of different shoe sizes and increase performance and comfort for anyone using the pedals.

To adjust the position, follow these easy steps:

1. Remove the screws with an Allen key from the pedal face plates
2. Align the pedal arms’ holes with the pedal face plates desired holes.

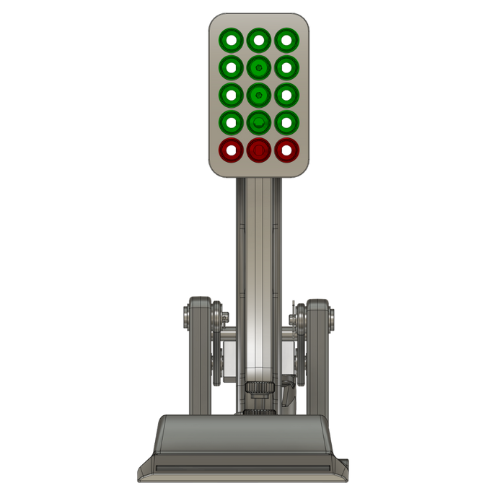

Attention: Only use the holes marked green for mounting.

3. Insert and fasten the screws with an Allen key.

Note: The screws can bite hard, so be careful not to overtighten or have the tool slip.

Recommended torque: 2nm
